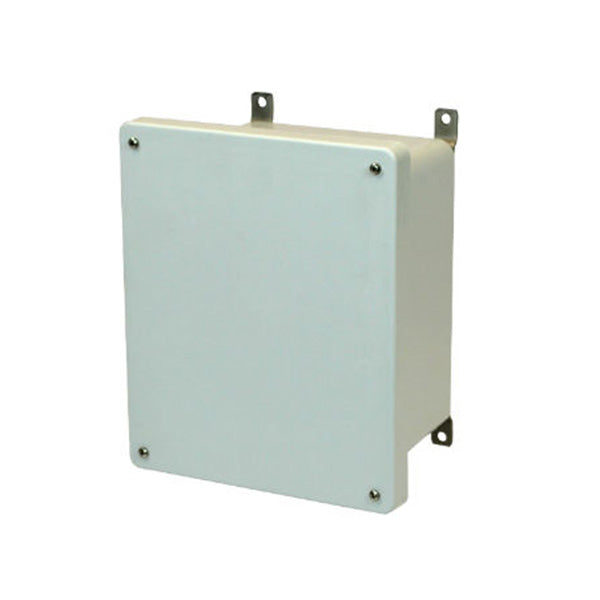

AM1084 10x8x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover

AM Series JIC Size Junction Box - Lift-Off Screw Cover - Part AM1084

Allied Moulded enclosures have a 4-6 week lead time.

$107.23
$107.23

Availability: In stock





Description

Details

This Allied Moulded electrical enclosure is made of fiberglass and has a lift-off screw cover. The JIC size junction box is made of tough, molded Ultraguard fiberglass-reinforced polyester. This box also features stainless steel cover screws and is effective for outdoor use with UV stabilization. The tough design of this Allied enclosure can protect your equipment from high temperatures and corrosive applications.

Additional Info

Additional Info

Part Number AM1084
Box Dimensions 10" (H), 8" (W), 4" (D)
Cover Type Opaque
Cover/Base Material UltraguardĀ® Fiberglass reinforced polyester (Color RAL 7035)
Latch Type Screw Cover
Gasket Material Closed Cell Neoprene
Back Panel Insert Material Brass
Fastener Material No
Mounting Feet Material Stainless Steel
Weight (lbs.) 6
UPC Code 85339840008
Standards UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13 CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 6P, 12, and 13
Compliance NEMA Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13 - IEC 60529 Type IP66, and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet or 1.8m)
Optional Accessories Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
Related Documents No
