PVC and CPVC are two of the most commonly used piping materials in the plumbing and HVAC industries. They are both a type of plastic pipe that consists mainly of polyvinyl chloride and additional composite materials. The difference between the two is that CPVC has extra chlorination, making it harder, more durable, and more robust.
CPVC used to be more popular than PVC and was used for a wide range of plumbing purposes, including water lines and drains. Nowadays, however, PVC is the more popular plumbing material, and it's used mainly for drain lines, plumbing vents, and HVAC vents.
Because of how similar PVC and CPVC are in both composition and implementation, people often mistakenly think they're the same size. However, PVC and CPVC are not the same size and they use different systems of measurement. This article will explain those measuring systems and how to understand them so that you can use PVC and CPVC together.
What are PVC and CPVC
PVC stands for polyvinyl chloride and is a type of composite plastic piping used for transferring liquids, solids, or air. It is commonly used for drain lines in plumbing systems as well as vents for both plumbing and HVAC systems. It's a fairly lightweight and durable material that can last upwards of 100 years in ideal conditions.
CPVC stands for chlorinated polyvinyl chloride and is also a type of composite plastic piping. It can do all the things that PVC pipe can, and is even more durable and resistant to heat and UV radiation. However, because of its extra durability and features, CPVC is more expensive than PVC and isn't as widely used.
Are PVC and CPVC the Same Size?
Although PVC and CPVC are very similar in how they're designed and used in real-world situations, they aren't the same size. While CPVC and PVC both adhere to the nominal pipe size (NPS) system of measurement, they get measured differently.
How is CPVC Measured?

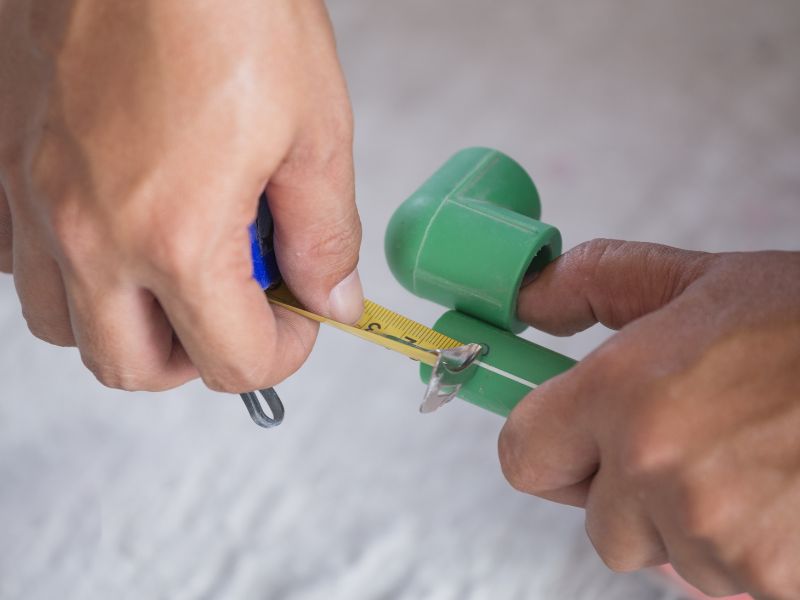

CPVC measurements are based on their outside diameter (OD). In other words, when someone needs a piece of 2" CPVC pipe, they will measure the distance of the outside of the pipe from one side to the other. This is the same way that copper gets measured, which means that copper and CPVC pipes are the same size.
How is PVC Measured?
PVC measurements are based on their inside diameter (ID), rather than the outside diameter, as is the case with CPVC. Therefore, when you need a piece of 2" PVC pipe, you'll measure the distance from one side of the pipe to the other, but on the inside of the pipe. This is the same way that iron pipe gets measured, which means that iron and PVC are the same size.
Because CPVC measurements are based on the inside diameter and PVC is based on the outside diameter, CPVC pipes typically have a smaller outer diameter than PVC pipes. For instance, a 2" CPVC pipe has an outer diameter of 2", while a 2" PVC pipe has an outer diameter closer to 2 ½".
Why the Size Difference Matters
If you're in the plumbing, HVAC, or pipe-laying industry, it's critical to note the size differential between CPVC and PVC pipe. Otherwise, there's a good chance you'll mistakenly try to mix the two materials without the proper adapters and connectors. For instance, if you attach a 3" CPVC pipe directly to a 3" PVC pipe, you will certainly have leaks and won't be able to create an air or watertight connection.
These differences are outlined by the fact that PVC and CPVC are held to two different international standards. PVC adheres to the ASTM D1785 standard specifications, whereas CPVC adheres to ASTM F441 standards. These standards outline the classification systems, testing methods, and requirements for either type of pipe. If you plan to use PVC and CPVC together, it's important to review these standards to ensure a proper and legal connection.
It's also essential to use the right connectors and adaptors when connecting PVC to CPVC. If you look at the connector, you'll immediately notice that the circumference of one side is smaller than the other. This reflects the size difference between PVC and CPVC piping.
Choosing the Right Material For Your Project
There's no doubt that PVC and CPVC are very similar, despite their size difference. While it's possible to use these materials interchangeably and for the same purposes, certain instances call for one type of pipe over the other.
When to Use CPVC Pipe
CPVC is renowned for its durability, strength, and versatility. It has a robust design and can withstand temperatures of up to 200 degrees Fahrenheit. The extra chlorination of CPVC also makes it UV resistant and gives it extra protection against bacteria buildup.
As such, CPVC is the preferred material if the pipe is going to be exposed to sunlight or large amounts of bacteria. It's also the better option if you're working with chemicals or if the air or liquid the pipe is carrying exceeds 200 degrees.
In other words, CPVC is a better option than PVC in extreme conditions or if you're working with harsh chemicals. It's simply more robust and durable and will hold up better under tough conditions. Common applications include:
- Commercial plumbing
- Medical facilities
- HVAC and plumbing vents
- Outdoor use
- Chemical processing
- Wastewater treatment
When to Use PVC Pipe
In general, most plumbing, HVAC, electrical, and similar industries don't operate in extreme temperatures or conditions. As such, PVC pipe is used almost exclusively for the transfer of water, air, and fumes. It's far cheaper than CPVC and nearly as strong and durable, making it the preferred option in most situations.
Conclusion
If you have an upcoming plumbing project, PVC and CPVC are two excellent options that can likely meet your needs. Both materials are highly durable, strong, and long-lasting, and are great for transferring a wide range of liquids and air. If you're new to the world of PVC and CPVC, explore PVC Fittings Online and check out the different options and materials to choose from!
