How to Tell If Your Valve is Open or Closed
|
|
Time to read 5 min
One question that plagues both homeowners and professionals alike is: “Is my valve open or closed?” If you have a butterfly or ball valve, the direction of the handle indicates whether the valve is open or closed. If you have a stop or gate valve, it is harder to tell if your valve is open or closed because there are very little to no visual cues, meaning you have to rely on the amount of resistance to determine if your valve is truly closed. Below we’ll walk through four different types of valves, discussing the specifics of determining if the valve is closed or open.
Is My Ball Valve Open or Closed?

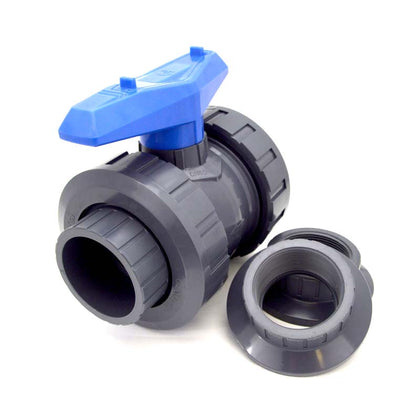

Ball valves are adeptly named because of the ball that sits inside the housing unit. The ball has a hole through the center. This hole faces the flow of water when the valve is open. When the valve is closed, the solid side of the ball faces the flow, effectively blocking further forward movement of the liquid. Because of this design, ball valves are a type of shut-off valve, meaning they can only be used to stop and start flow; not regulate the flow.
Ball valves are perhaps the easiest valve to see if they are open or closed. If the handle on top is parallel to the valve, it's open. Likewise, if the handle is perpendicular to the top, the valve is closed.
Common places you might find a ball valve are in irrigation and in sites where you need to control water supply from one area to another.
How to Determine if Your Butterfly Valve is Open
Butterfly valves differ from all the other valves in this post because not only can they be used as a shut-off valve, they can also be used as a regulatory valve. Inside the butterfly valve is a disc that rotates as you turn the handle. Butterfly valves can regulate flow by having the disc partway open.
Butterfly valves have a lever handle on the top that is similar to the ball valve. This handle both indicates if the flow is on or off, and can be used to turn the valve partway on by locking the disc in place. When the handle is parallel to the valve, it is closed, and when it is perpendicular to the valve, it is open.
Butterfly valves are suited for use in garden irrigation, and they are also commonly used in space-restrictive applications. They have a slender design that makes them ideal for tight-fitting spaces. Because of the disc inside, these valves are not the best to use in high-pressure applications as there will always be something in the way partially blocking the flow.
How to Know if Gate Valves are Open
Gate valves are a type of isolation (or shut off) valve that are found on pipes that require the complete turn off or on of flow. Gate valves have a knob on top that when turned raises and lowers the gate inside, hence the name. To turn on the gate valve, you turn the knob counter-clockwise, and you turn it clockwise to turn off the valve.
There is no visual indicator to see if a gate valve is open or closed. It is, therefore, important to remember that when you are turning the knob you must stop when you hit resistance; to continue to try and turn the valve could potentially damage the gate, rendering your gate valve ineffective.
The most common uses around the house for gate valves are for your main water shut off or, as you might see more frequently, the water spigot on the outside of your home.
Is My Stop Valve Closed?
The final valve on our list is a stop valve, which is another type of shut off valve. This valve looks similar to the gate valve, but it is more compact. It is also the valve that you might be the most familiar with. These valves are often used to connect appliances, like toilets and sinks, to the water supply line in your house. You twist the stop valve clockwise to turn the supply off and counter-clockwise to turn it on. Stop valves have a stem under their handle that rises and lowers as the valve is turned off and on. The stem is not visible when the stop valve is closed.
Final Tip: Know Your Type of Valve
At the end of the day, the most important part to knowing if a valve is open or closed is to know what type of valve you have. Ball and butterfly valves both have a lever handle on top that indicates if the valves are open or closed; whereas gate and stop valves both require the turning of a knob and have no or harder to see visual cues on if they are open or closed.
Ball Valves (Lever Handles): These are the easiest to identify visually. If the handle is parallel to the pipe, the valve is open; if the handle is perpendicular (crosswise) to the pipe, the valve is closed.
Butterfly Valves: Similar to ball valves, these use a lever handle that indicates the position of the internal disc. When the handle is parallel to the valve, it is closed, and when it is perpendicular, it is open.
Gate Valves (Round Knobs): These have no clear visual indicator. You must rely on physical resistance: turn the knob clockwise until it stops to close it, and counter-clockwise to open it.
Stop Valves (Appliance Connectors): Commonly found under sinks and toilets, these valves use a rising stem. When the valve is closed (turned clockwise), the stem is hidden; when open (turned counter-clockwise), the stem becomes visible under the handle.
FAQs
How can I tell if a ball valve is open or closed just by looking at the handle?
For ball valves, the position of the lever handle is a direct indicator: if the handle is parallel to the pipe, the valve is open. If the handle is perpendicular (at a 90-degree angle) to the pipe, the valve is closed.
Is the handle position for a butterfly valve the same as a ball valve?
Yes, butterfly valves use a similar lever handle system. When the handle is parallel to the valve body, it is open, and when it is perpendicular, it is closed. Unlike ball valves, butterfly valves can also be used to regulate flow by locking the handle at various angles in between.
How do I know if a gate valve is closed if there are no visual cues?
Gate valves operate with a round knob rather than a lever. To determine its status, you must turn the knob: turning it clockwise closes the valve, and counter-clockwise opens it. You will know it is fully closed or open when you feel firm resistance—be careful not to force it further, as this can damage the internal gate.
What is the easiest way to check the status of a stop valve (like those under a sink)?
Stop valves typically have a stem under the handle that moves as you turn it. When the valve is closed (turned fully clockwise), the stem is usually not visible or is at its lowest point. When you turn it counter-clockwise to open it, the stem rises and becomes visible.
