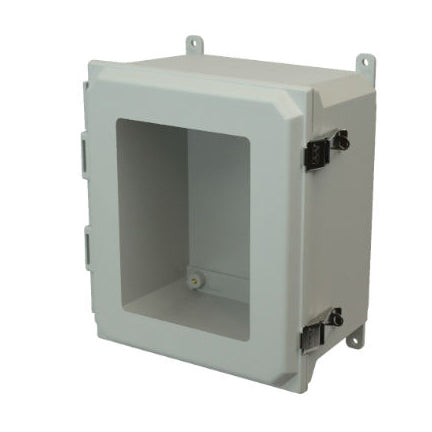

AMU1206LW 12x10x6 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window Foot Mount

AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover Window - Part: AMU1206LW

Allied Moulded enclosures have a 4-6 week lead time.

$297.94
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Insulating and housing electrical and electronic controls, instruments or components for indoor and outdoor applications Allied Moulded's boxes are tough and molded for long term use. This enclosures protect against harsh weather and corrosive environments

Additional Info
Related Documents: Not Available
Part Number: AMU1206LW
Box Dimensions: 12.05" (H), 10.27" (W), 6" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339959083
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
