PVC Fittings Online  |  SKU: AMU1648CCL

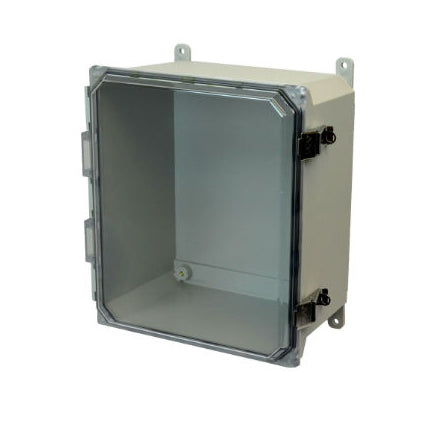

AMU1648CCL 16x14x8 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Clear Hinged Cover Foot Mount

AMU Fiberglass Enclosure Quick-Release Latch CLEAR Hinged Cover - Part: AMU1648CCL

Allied Moulded enclosures have a 4-6 week lead time.

$279.31
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This compression molded SMC box and clear polycarbonate cover made of Ultragaurd fiberglass reinforced polyester designed to insulate and house electrical and electronic controls for both indoor and outdoor applications. Protects from dirt, oil, water and much more. Easy to mount on a pole, wall or machine.

Additional Info
Related Documents: Not Available
Part Number: AMU1648CCL
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959762
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
