PVC Fittings Online  |  SKU: AM1206

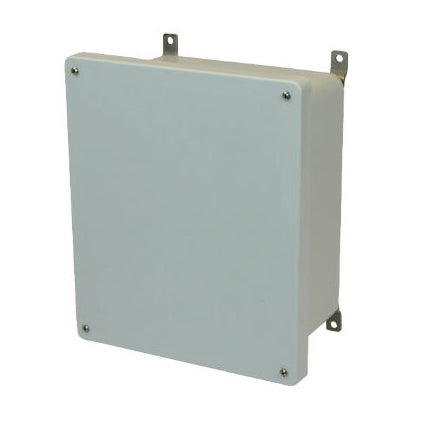

AM1206 12x10x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover

AM-Series JIC Size Junction Box with Lift-Off Screw Cover - Part: AM1206

Allied Moulded enclosures have a 4-6 week lead time.

$142.79
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied Moulded is a company with over 50 years of fiberglass molding knowledge. Their fiberglass boxes are easy to customize, punch, drill, and saw, allowing for endless customization! This enclosure features a lift-off screw cover and is part of Allied Moulded's AM series. These boxes are easy to mount on a wall, machine, or even a pole (with a pole mounting kit).

Additional Info
Related Documents: Not Available
Size in Inches: 12 inch
Part Number: AM1206
Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)
Cover Type: Opaque
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Screw Cover
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 8
UPC Code: 85339912064
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT10
Fastener Material: 300 Series Stainless Steel
