PVC Fittings Online  |  SKU: AM1426L

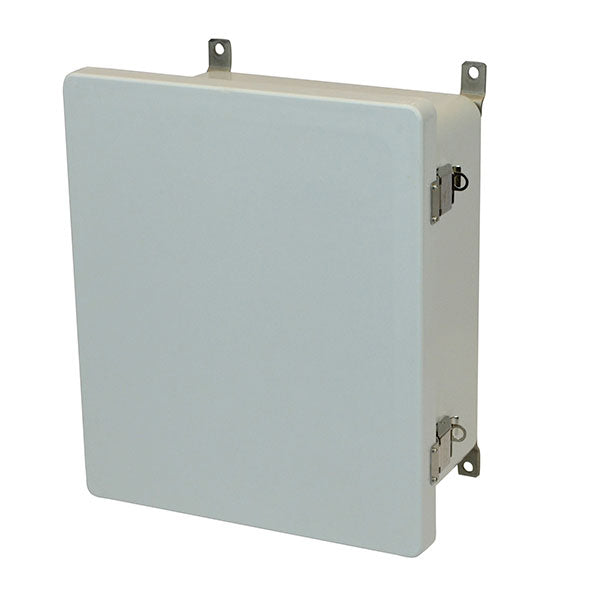

AM1426L 14x12x6 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover

AM Series JIC Size Junction Box with Snap Latch Hinged Cover - Part: AM1426L

Allied Moulded enclosures have a 4-6 week lead time.

$204.22
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This non-corrosive, non-conductive light weight wall mount enclosure protects electrical and electronic controls indoor and out. It is easy to use and to mount to wall, machine or pole.

Additional Info
Related Documents: Not Available
Size in Inches: 14 inch
Part Number: AM1426L
Box Dimensions: 14.14" (H), 12.26" (W), 6.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 12
UPC Code: 85339914297
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P142Aluminum Back Panel: PA142Fiberglass Back Panel: PF142Galvanized Back Panel: PG142Key-lock Kit With HFP: AMKEYLOCKKFCPole Mount Kit: AMPOLEMNT12
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
