PVC Fittings Online  |  SKU: AM1648TW

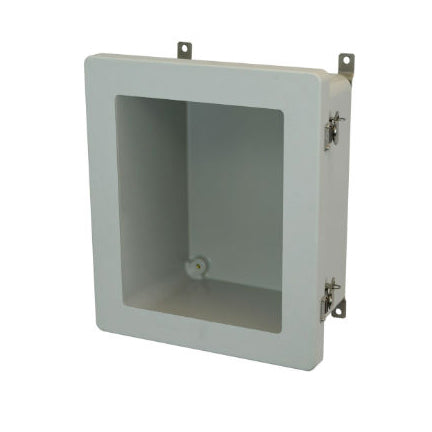

AM1648TW 16x14x8 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Window

AM Series JIC Size Junction Box with Twist Latch Hinged Cover and Window - Part: AM1648TW

Allied Moulded enclosures have a 4-6 week lead time.

$376.71
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
With a Twist Latch Hinged Cover and Window, Allied Moulded's enclosure will protect against salt, water, chemicals and more. This enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion.

Additional Info
Part Number: AM1648TW
Box Dimensions: 16.27" (H), 14.4" (W), 8" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 13
UPC Code: 85339916543
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvanized Back Panel: PG164 Keylock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT14
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
