PVC Fittings Online  |  SKU: AM1868L

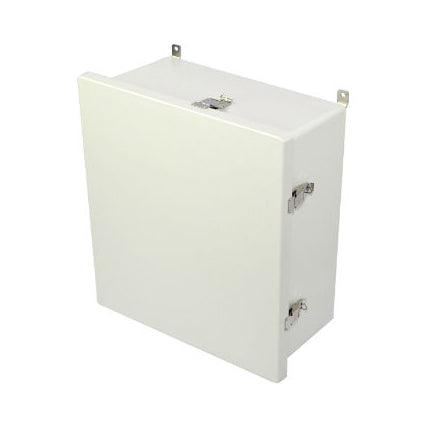

AM1868L 18x16x8 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover

AM Series JIC Size Junction Box with Snap Latch Hinged Cover - Part: AM1868L

Allied Moulded enclosures have a 4-6 week lead time.

$308.74
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
A part of Allied's AM- Series this enclosure is made of fiberglass reinforced polyester and has a snap latch hinged cover. These products are made for long-term use in extreme weather conditions. Great for indoor and outdoor use.

Additional Info
Size in Inches: 18 inch
Part Number: AM1868L
Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 17
UPC Code: 85339918714
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvanized Back Panel: PG186 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT16
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
