PVC Fittings Online  |  SKU: AM1868RL

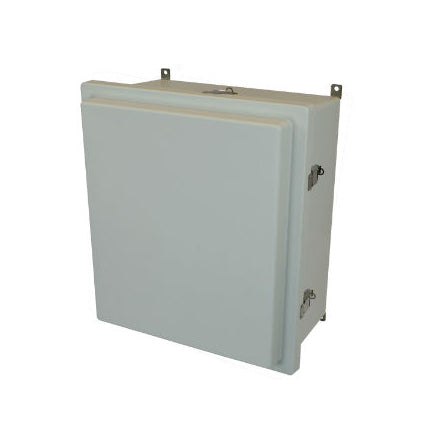

AM1868RL 18x16x8 NEMA 4X Fiberglass Enclosure w/ Raised Quick Release Latch

AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover - Part: AM1868RL

Allied Moulded enclosures have a 4-6 week lead time.

$320.34
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion. Well suited for extreme temperatures and corrosive environments this electrical enclosure insures the protection of electronic controls, instruments and components.

Additional Info
Size in Inches: 18 inch
Part Number: AM1868RL
Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 18
UPC Code: 85339918936
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvanized Back Panel: PG186 Aluminum HFP: HFP186 Keylock Kit: AMKEYLOCKRCKeylock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT16
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
