PVC Fittings Online | SKU: AM864

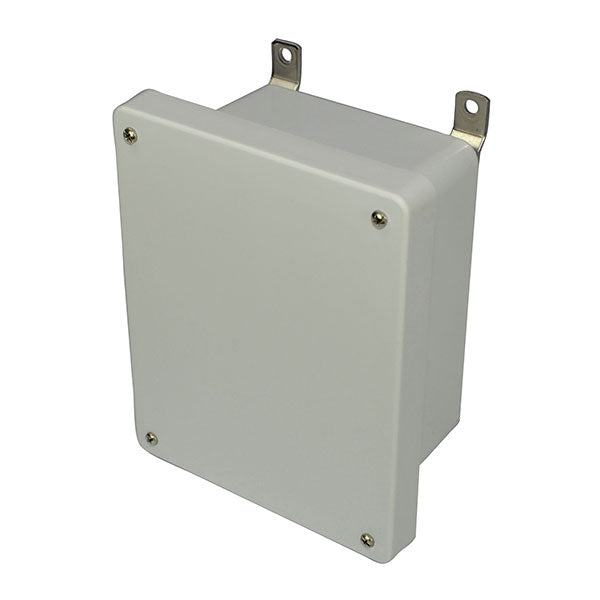

AM864 8x6x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover

Name: AM864 8x6x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover
Brand: PVC Fittings Online
SKU: AM864
Price: 103.13 USD
Availability: InStock

AM Sries JIC Size Junction Box with Lift-Off Screw Cover - Part: AM864

Allied Moulded enclosures have a 4-6 week lead time.

$103.13

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This enclosure made specifically for electrical equipment is made of fiberglass reinforced polyester. It protects against rain, sleet, wind, oil and much more. It is easy to mount on a wall, pole, or machine.

Additional Info

Related Documents: Not Available

Part Number: AM864

Box Dimensions: 8" (H), 6.13" (W), 4.01" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 4

UPC Code: 85339908647

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters), RoHS directive

Optional Accessories: Back Panels, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel mounting brackets
