PVC Fittings Online | SKU: AM864RTW

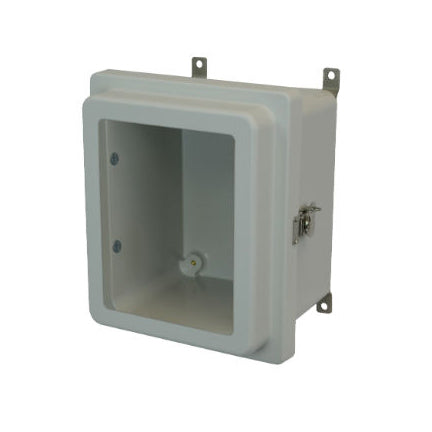

AM864RTW 8x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover Window

Name: AM864RTW 8x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover Window
Brand: PVC Fittings Online
SKU: AM864RTW
Price: 216.56 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover and Window - Part: AM864RTW

Allied Moulded enclosures have a 4-6 week lead time.

$216.56

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

The AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover and Window is light weight and customizable This enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion. It is also easy to mount to a wall, machine or pole.

Additional Info

Related Documents: Not Available

Part Number: AM864RTW

Box Dimensions: 8" (H), 6.13" (W), 4.01" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Twist Latch

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339908869

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel mounting brackets
