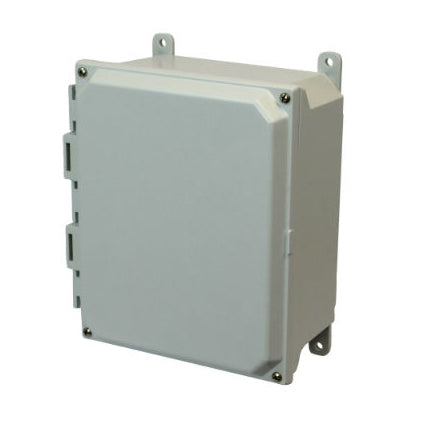

AMU1084 10x8x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Foot Mount

Name: AMU1084 10x8x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Foot Mount
Brand: PVC Fittings Online
SKU: AMU1084
Price: 116.40 USD
Availability: InStock

AMU Fiberglass Enclosure Lift-Off Screw Cover - Part: AMU1084

Allied Moulded enclosures have a 4-6 week lead time.

$116.40

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

The AMU Series are the newest Allied Moulded enclosures developed primarily OEM panel builder applications. This enclosures is multi-mounting capable. Durable enough for high temperatures and corrosive environments

Additional Info

Related Documents: Not Available

Part Number: AMU1084

Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 5

UPC Code: 85339959151

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
