PVC Fittings Online  |  SKU: AMU1206CCL

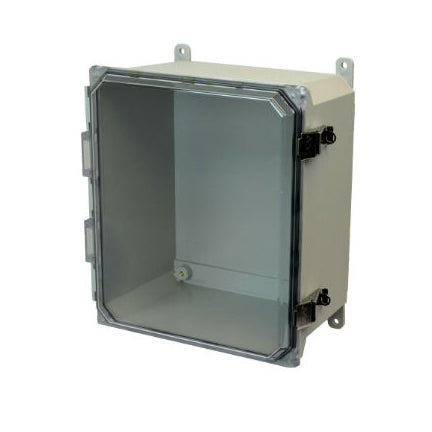

AMU1206CCL 12x10x6 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Clear Hinged Cover Foot Mount

AMU Fiberglass Enclosure Quick-Release Latch Clear Hinged Cover -Part: AMU1206CCL

Allied Moulded enclosures have a 4-6 week lead time.

$206.84
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Ultraline is the ultimate in fiberglass enclosures. It comes with mounting options to include an out of the box mounting flange or adjustable mounting feet to cover various mounting configurations. This box has molded latch keepers and a tongue and groove seal design.

Additional Info
Related Documents: Not Available
Part Number: AMU1206CCL
Box Dimensions: 12.05" (H), 10.27" (W), 6" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339959076
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
