PVC Fittings Online  |  SKU: AMU1648LF

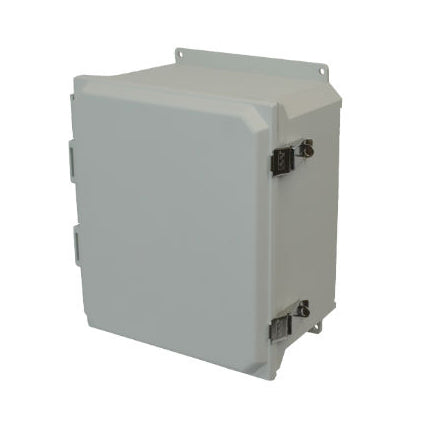

AMU1648LF 16x14x8 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Flange Mount

AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover - Part: AMU1648LF

Allied Moulded enclosures have a 4-6 week lead time.

$258.08
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
The gasket on Allied's AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover is made of closed-cell neoprene with a cord encased in a continuous channel. This box is especially well suited for high temperatures. These enclosures are non-corrosive and non-conductive.

Additional Info
Related Documents: Not Available
Part Number: AMU1648LF
Box Dimensions: 16.05" (H), 14.27" (W), 8" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 11
UPC Code: 85339959885
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
