PVC Fittings Online  |  SKU: AMU664LWF

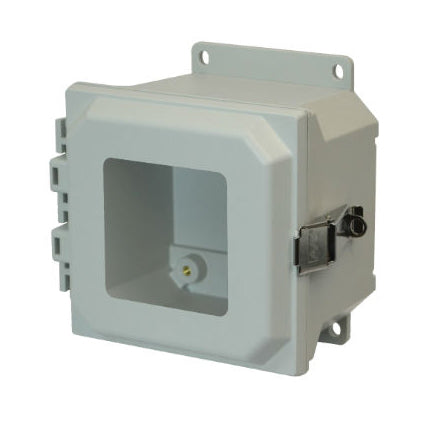

AMU664LWF 6x6x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window Flange Mount

AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover Window - Part: AMU664LWF

Allied Moulded enclosures have a 4-6 week lead time.

$205.60
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied's enclosures can be found in a multitude of industrial applications all over the world. The enclosures are easily punched, drilled or sawed for you convenience This AMU series product is light weight and has lower installation cost than that of steel.

Additional Info
Related Documents: Not Available
Part Number: AMU664LWF
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339958222
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
