PVC Fittings Online  |  SKU: AMU664TWF

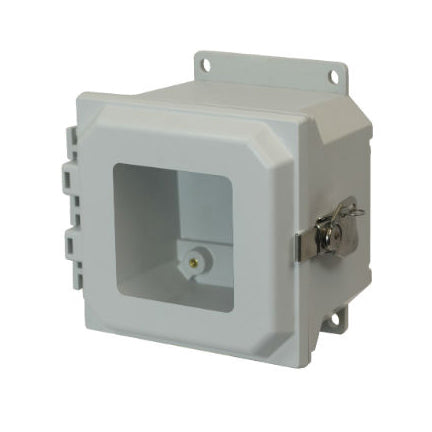

AMU664TWF 6x6x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Window Flange Mount

AMU Fiberglass Enclosure Twist Latch Hinged Cover Window - Parts: AMU664TWF

Allied Moulded enclosures have a 4-6 week lead time.

$205.60
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
When compared to metals such as carbon and stainless steel, Fiberglass has many advantages: its light weight and easy to handle, corrosion resistant and easily modified. This AMU Fiberglass Enclosure with Twist Latch Hinged Cover Window is durable and light weight. Great for both indoor and outdoor applications.

Additional Info
Related Documents: Not Available
Part Number: AMU664TWF
Box Dimensions: 6.04" (H), 6.26" (W), 3.99" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 3
UPC Code: 85339958253
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
