PVC Fittings Online  |  SKU: AMU864CC

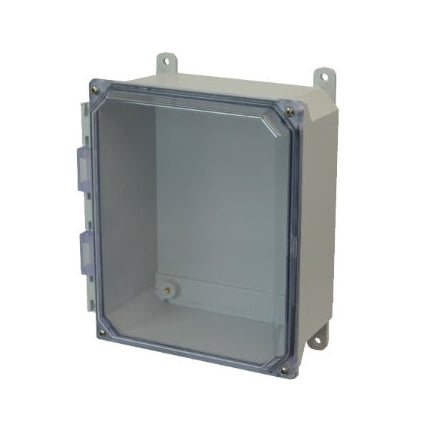

AMU864CC 8x6x4 NEMA 4X Fiberglass Enclosure w/ Clear Lift-Off Screw Cover Foot Mount

AMU Fiberglass Enclosure CLEAR Lift-Off Screw Cover - Part: AMU864CC

Allied Moulded enclosures have a 4-6 week lead time.

$124.47
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This Allied wall mount assembly has a lift off 4-screw clear cover and is a member of the AMU series. Light gray in color with a clear polycarbonate instrumentation cover to protect from elements and to keep electronic equipment visible.

Additional Info
Related Documents: Not Available
Part Number: AMU864CC
Box Dimensions: 8.05" (H), 6.27" (W), 4" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 4
UPC Code: 85339952503
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
