PVC Fittings Online  |  SKU: AMU864CCL

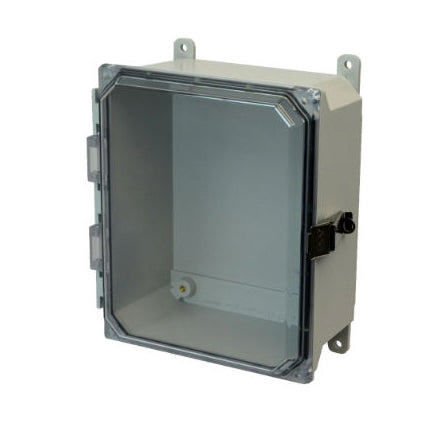

AMU864CCL 8x6x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Clear Hinged Cover Foot Mount

AMU Fiberglass Enclosure Quick-Release Latch CLEAR Hinged Cover - Part: AMU864CCL

Allied Moulded enclosures have a 4-6 week lead time.

$161.43
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This Allied enclosure has NEMA 4x for both indoor and outdoor applications. This enclosure is light weight and easy to handle. A member of the AMU series this enclosure is a part of Allied's newest line of enclosures. Can be easily mounted to a pole, wall or machine.

Additional Info
Related Documents: Not Available
Part Number: AMU864CCL
Box Dimensions: 8.05" (H), 6.27" (W), 4" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 4
UPC Code: 85339952541
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
