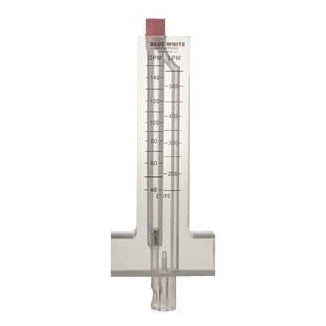

F-30100P Blue-White Flow Meter 1" Pipe

This F-300 series Blue-White Industries flowmeter is made for 1" clamp on applications. NSF 50 listed. This model is designed for applications running 5-35 gallons per minute. F Series meters must be mounted at the vertical (twelve o'clock) position on horizontal pipe.

Pipe Size: 1"

Max Working Pressure: 75 PSI (5.17 bar) @ 70˚F (21˚C)

Max Fluid Temperature: 190˚F / 88˚C @ 0 PSI

Meter Body Material: Acrylic

Gasket Material: Neoprene

Connection Type: Saddle

Flow Range: 5 - 35 GPM (4-36 SCH 80)

*Compatible for replacement on the following Accu-Tab® chlorinator units: PowerPro 3075. Component 9500010.
