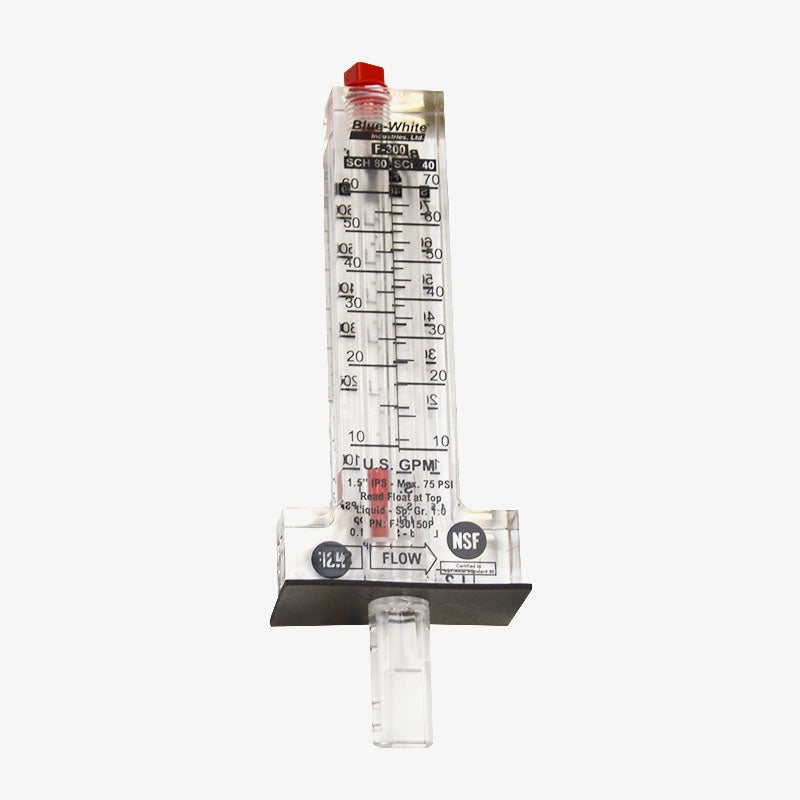

F-30150P Blue-White Flow Meter 1-1/2" Pipe

The F-30150P 1-1/2" Blue-White Flowmeter is designed with an easy to read dual scale. These acrylic flowmeters come in various sizes, this model is 1.5" and is NSF 50 listed. Fine to use in direct sunlight indoors or outdoors. Includes stainless steel clamps for easy install. F Series meters must be mounted at the vertical (twelve o'clock) position on horizontal pipe.

Pipe Size: 1-1/2"

Max Working Pressure: 75 PSI (5.17 bar) @ 70˚F (21˚C)

Max Fluid Temperature: 190˚F / 88˚C @ 0 PSI

Meter Body Material: Acrylic

Gasket Material: Neoprene

Connection Type: Saddle

Flow Range: 10 - 70 GPM (10-60 SCH 80)

*Compatible for replacement on the following Accu-Tab® chlorinator units: PowerBase 3500, PowerPro 3150. Component 9500005.
