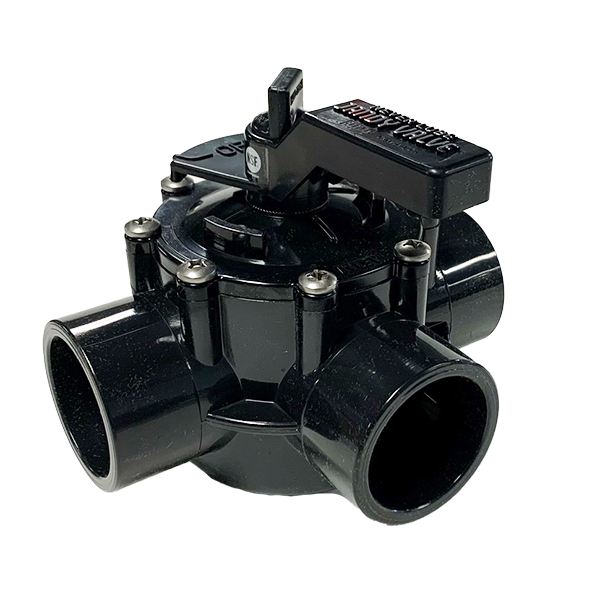

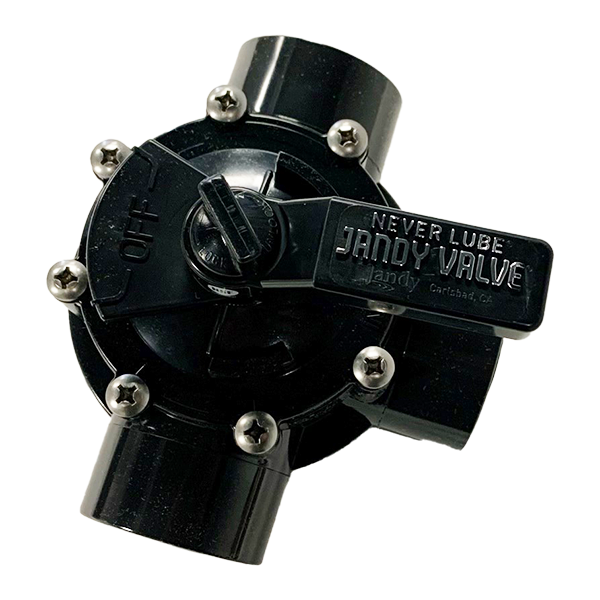

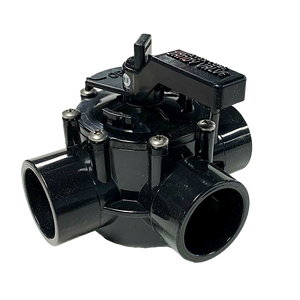

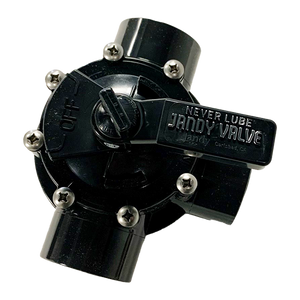

3 Port 1-1/2" - 2" CPVC Jandy Valve, Standard Diverter (4715)

p>This 3-port CPVC Jandy Valve is designed for both 1-1/2" and 2" pipe. 1-1/2" CPVC pipe will fit into the valve ports while 2" pipe is joined using 2" pipe coupler.

The internal valve assembly much be removed prior to gluing valve body pipe fittings.

Features:

• 1.5" x 2" dimension designed to easily connect with Jandy Pro Series 3HP Stealth™ Pumps
• Included placards label the valve position
• Never requires lubrication
• Adjustable-stop feature allows for flow adjustment
• Both diverter valves can handle flow rates up to 170 GPM with minimal head loss, making them great for spas and water features that require high flow rates

Specifications:

Valve Type: Diverter

Requires Lubrication: No

Number of Ports: 3

Size: 1-1/2" - 2"

Seal: Positive

Material: CPVC
