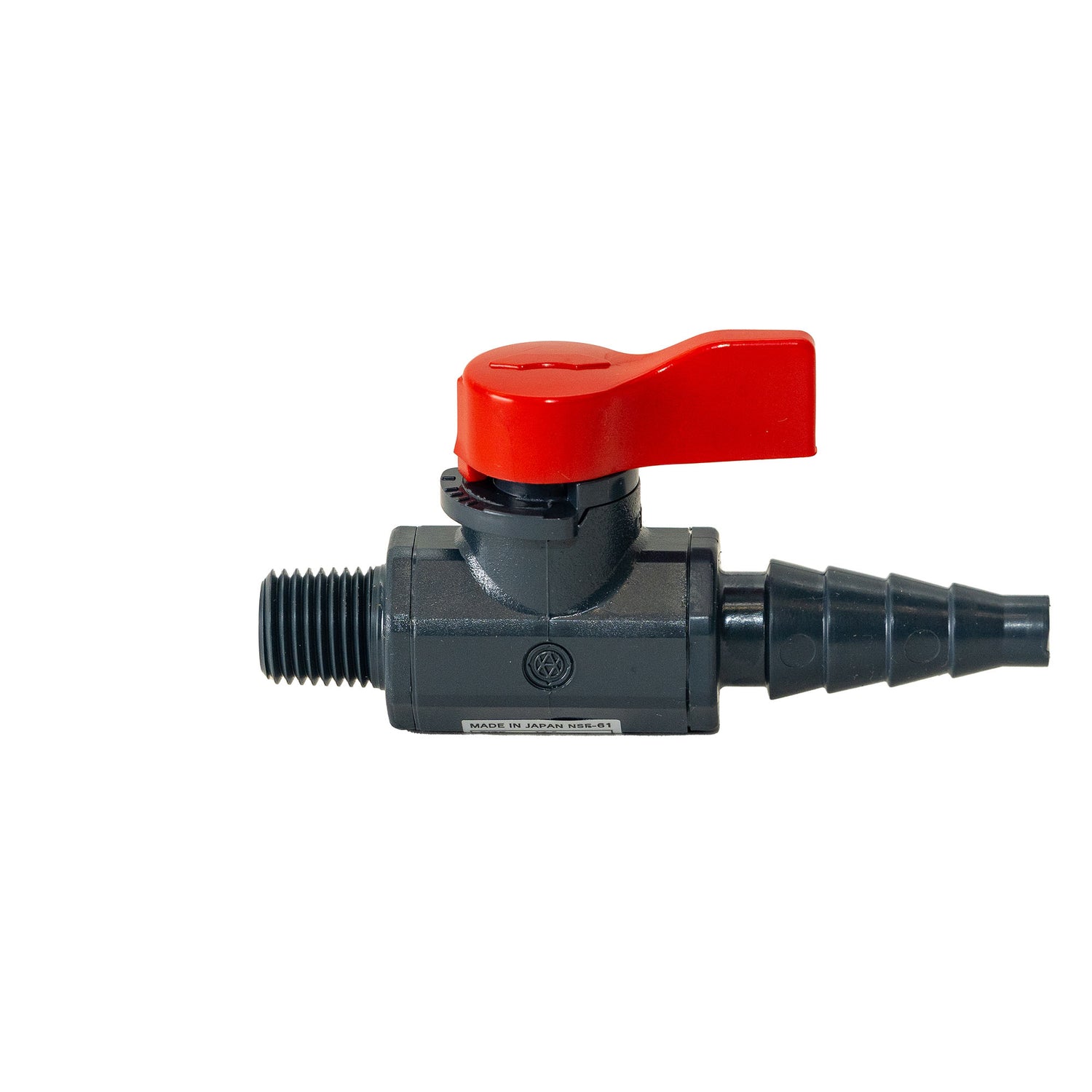

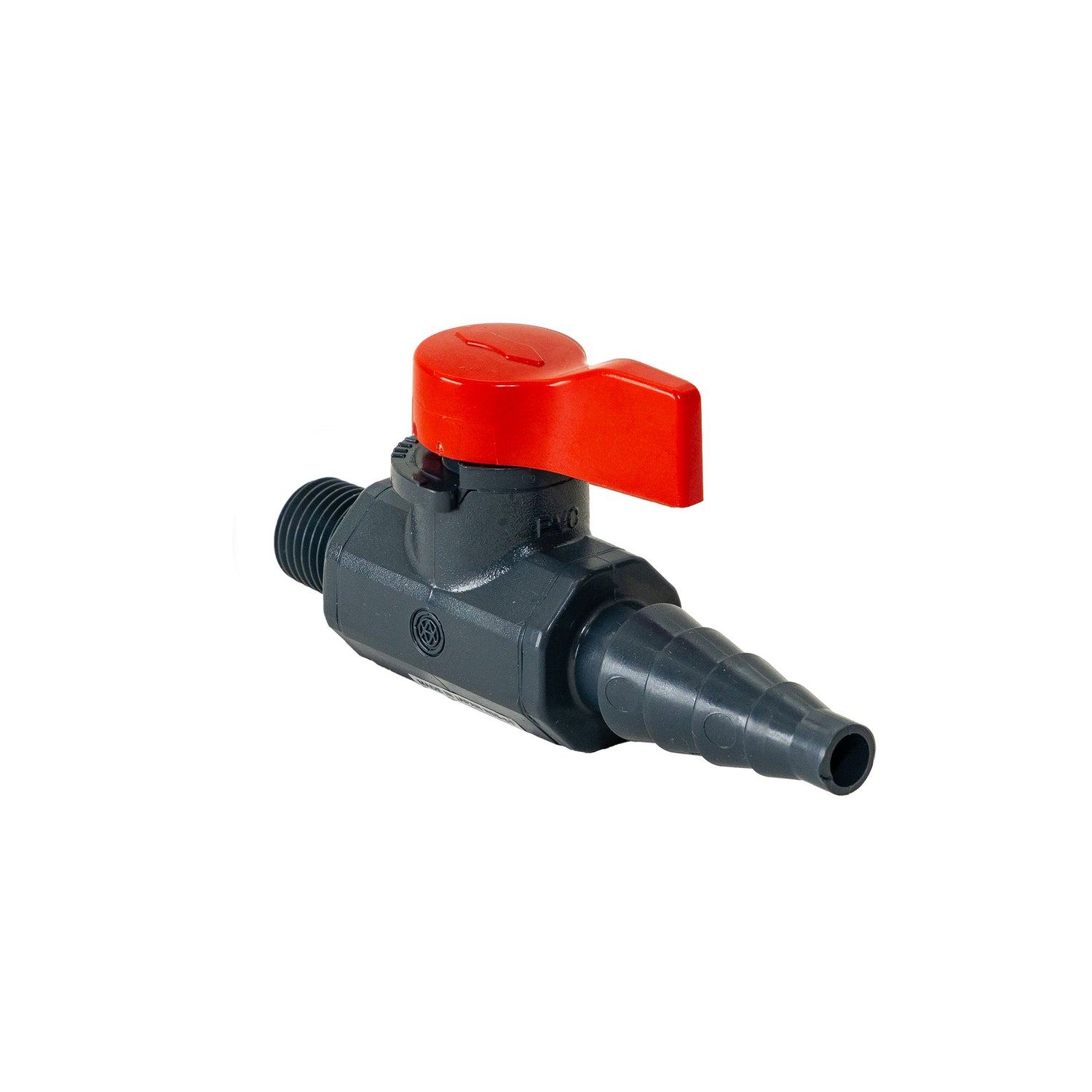

Asahi/America 1078002 1/4 in PVC Labcock Ball Valves Male Thread x Hose EPDM Seal

This is a quarter-turn plastic (PVC) manual ball valve. It has many process control monitoring and fluid sampling uses in the laboratory. These are quarter-inch valves, which come in seven configurations. They may be used for simple on/off service or for calibrating flow.

All Labcock® valves shall be of compact, unibody construction having a lever handle, calibrated flow indicator and male threads, female threads, hose ends or elbow as part of the valves' integral construction. Valves shall be constructed of PVC conforming to ASTM D1784 Cell Classification 12454A. All O-rings shall be EPDM. Labcock® valves are rated to 150psi at 70°F, as manufactured by Asahi/America, Inc.

• Pressure rated at 150 psi at 120°F (water)
• Precise fingertip control
• Calibrated flow indicator
• Rugged unibody construction, sturdy stem
• Full vacuum-rated, 29.9" Hg
• 90° turn operation with lever handle
• Cv = 1.6
• Ideal Applications Include: Chemical processing, water and wastewater
