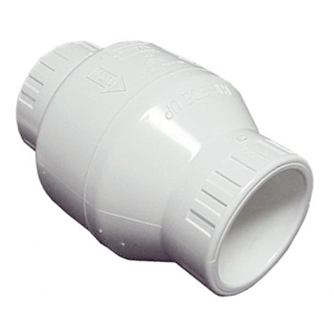

1/2" PVC Swing Check Valve - Socket (S1520-05)
1/2" PVC Swing Check Valve - Socket Socket S1520-05
$19.71
Unit price
/
Unavailable
Shipping calculated at checkout.
1/2" PVC Swing Check Valve - Socket (S1520-05) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
1/2" PVC Swing Check Valve - Socket (S1520-05)
$19.71
Unit price
/
Unavailable
Actual part may differ slightly from image shown.
Description
Description
This PVC swing check valve features an EPDM seat and compact style. Can be installed horizontally or in up-flow vertical position. Be sure to install with arrow pointing in direction of flow. This valve features socket ends.
Part No: S1520-05
Size: 1/2"
Open Pressure: 150 psi
Back Pressure: 75 psi
Max Temperature: 140 deg F
Flow velocity should not exceed 5ft/sec
Additional Info
Additional Info
Size in Inches: 1/2 inch
Sub-Category: White
