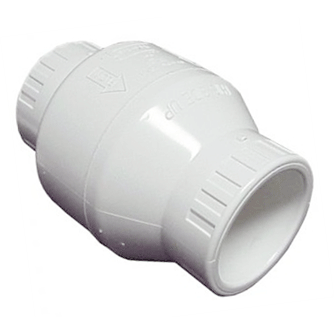

1-1/4" PVC Swing Check Valve - Socket (S1520-12)

This is a white PVC utility swing check valve. It features socket ends, EPDM seat, and is NSF Listed for potable water use. This 1-1/4 inch swing check valve can be installed either horizontally or in an upflow vertical position. The swinging disk mechanism allows flow in one direction while preventing flow in the opposite direction.

Part No: S1520-12

Size: 1-1/4"

Open Pressure: 150 psi

Back Pressure: 75 psi

Max Temperature: 140 deg F

Flow velocity should not exceed 5ft/sec
