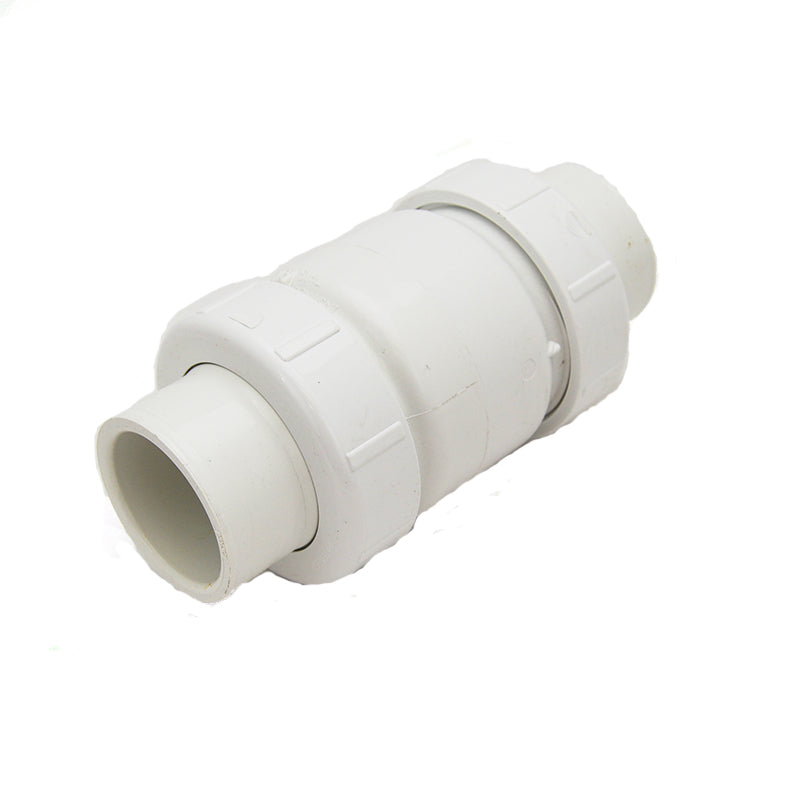

3/4" PVC True Union Swing Check Valve - Socket (S1720-07)

This is a 3/4 inch nominal size PVC check valve. This valve prevents backflow in a PVC pipe line, allowing media to flow in one direction only. It also features union ends that screw off so that the middle of the valve can be taken out of line for cleaning and maintenance. This true union valve style is ideal for applications where the valve might have to be repaired or replaced in the future.

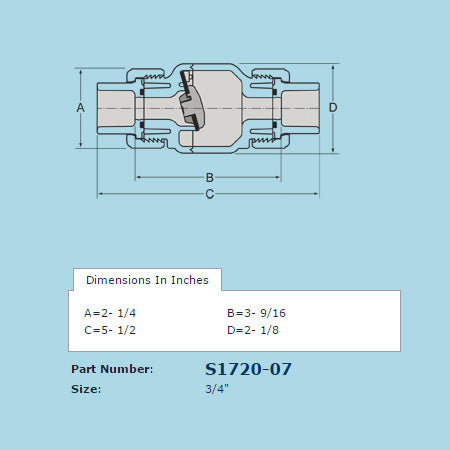

Nominal Size: 3/4"

Material: PVC, EPDM Seals

End Type: Socket

Pressure Rating (Open): 150 psi @ 73F Full Flow

Pressure Rating (Closed): 75 psi Back Pressure

*Standard 3/4" nominal size PVC pipe fits inside both ends of this valve.
