PVC Fittings Online | SKU: SK-CSC-060-V

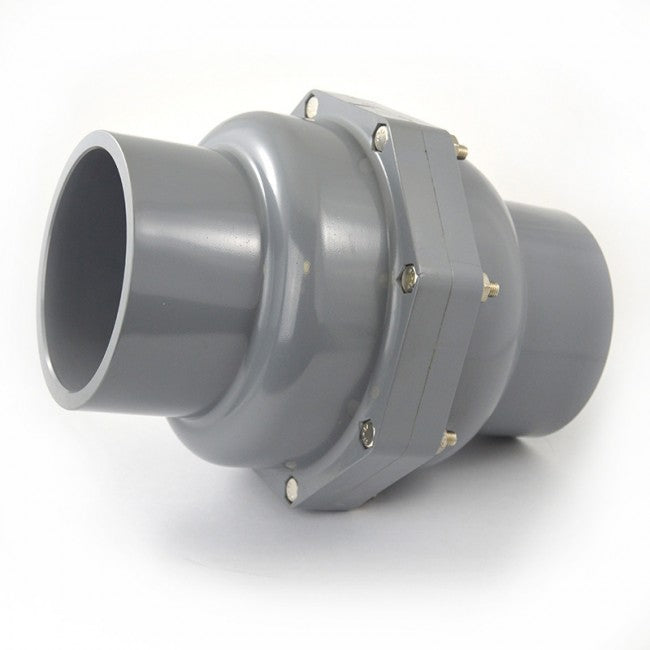

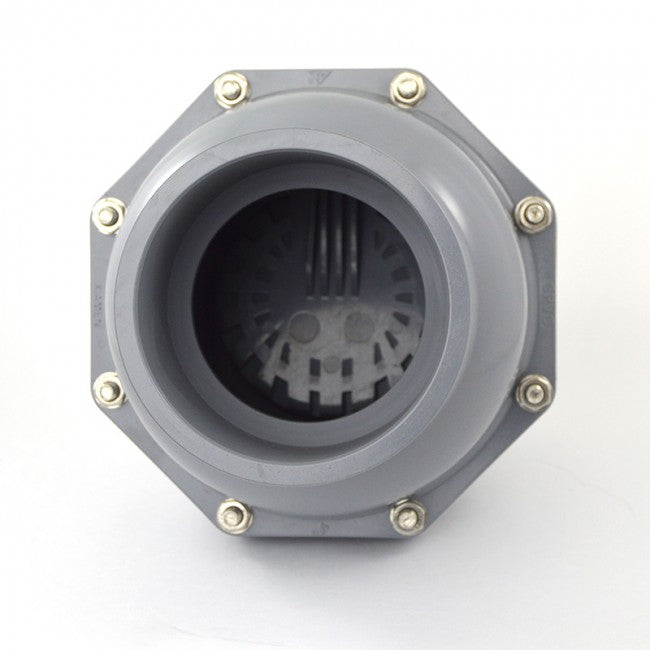

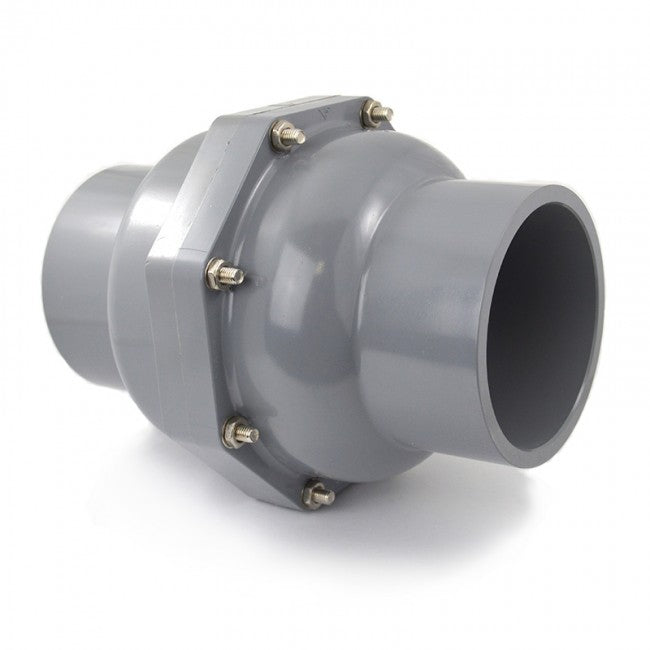

6" Industrial CPVC Swing Check Valve - Viton (SK-CSC-060-V)

Name: 6" Industrial CPVC Swing Check Valve - Viton (SK-CSC-060-V)
Brand: PVC Fittings Online
SKU: SK-CSC-060-V
Price: 1339.17 USD
Availability: InStock

Socket Weld CPVC Swing Check Valve with Viton Seals - 6 inch

$1,339.17

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This 6 inch nominal size CPVC valve features Viton seals. The ends are socket weld for connection with 6 inch Schedule 80 CPVC pipe. This valve is designed for commercial and industrial applications. It is suitable for temperatures up to 200 degrees Fahrenheit, 150 PSI max pressure.

Size: 6 inch IPS

Body Material: CPVC

Seal Material: VITON

Hardware Material: 304 Stainless Steel

Standard: ANSI

Joint End: Socket

Working Pressure: 150 PSI

Operating Temperature: 200F

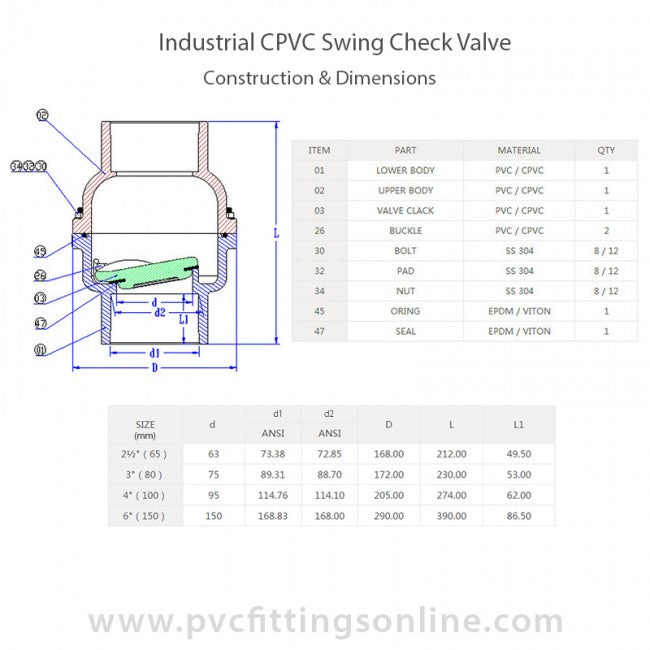

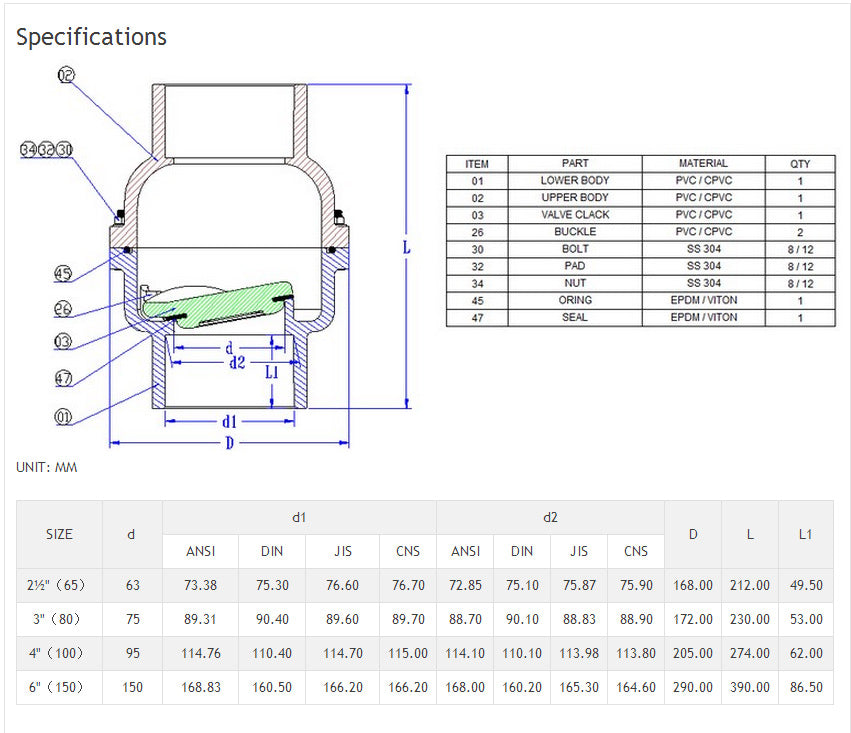

View Dimensional Specs
