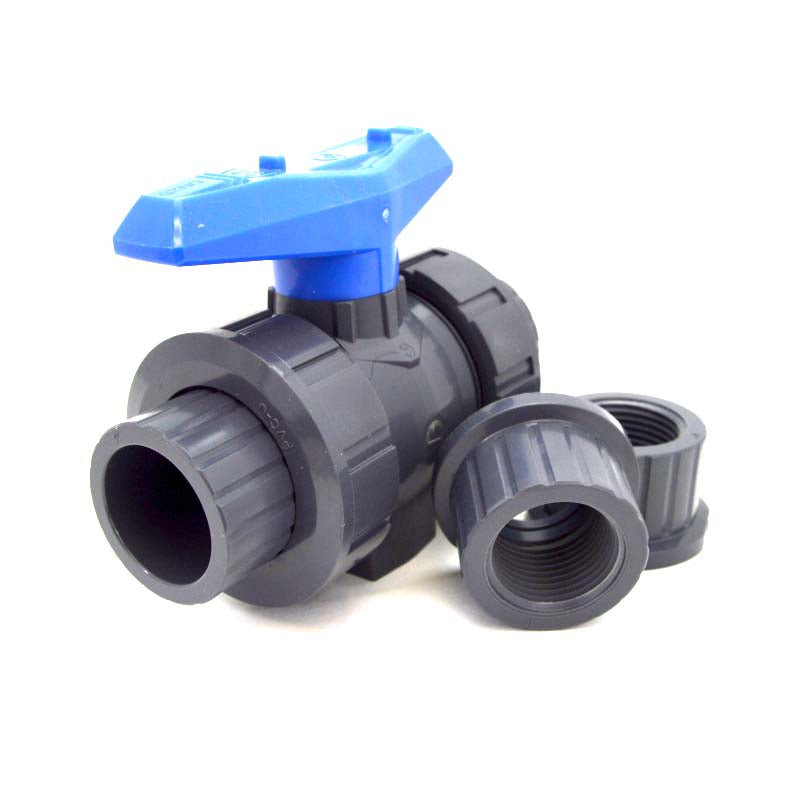

1" Flui-PRO Series 2 PVC True Union Ball Valve - Socket & Threaded Ends

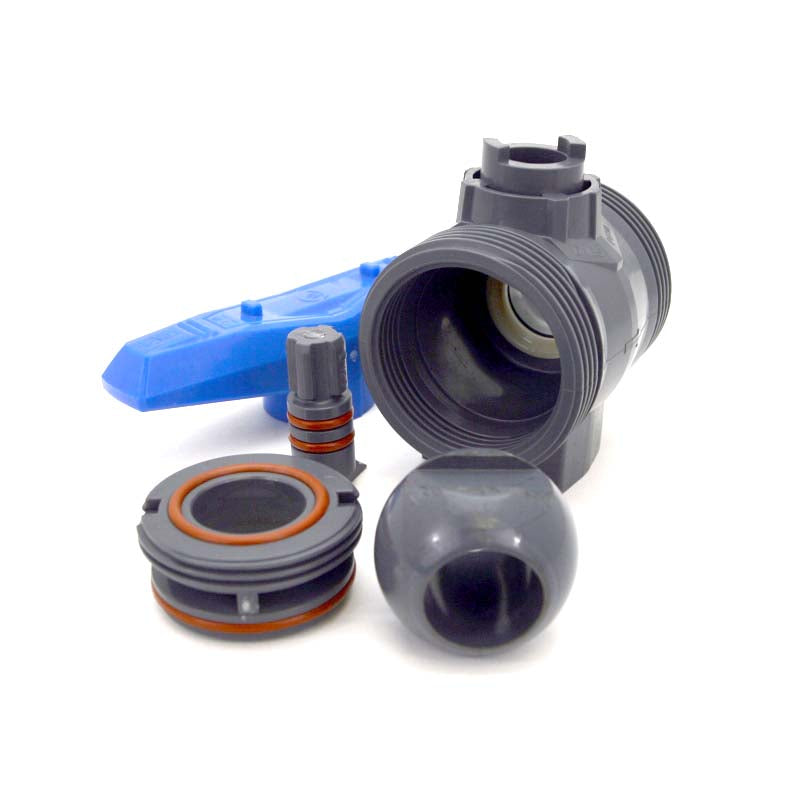

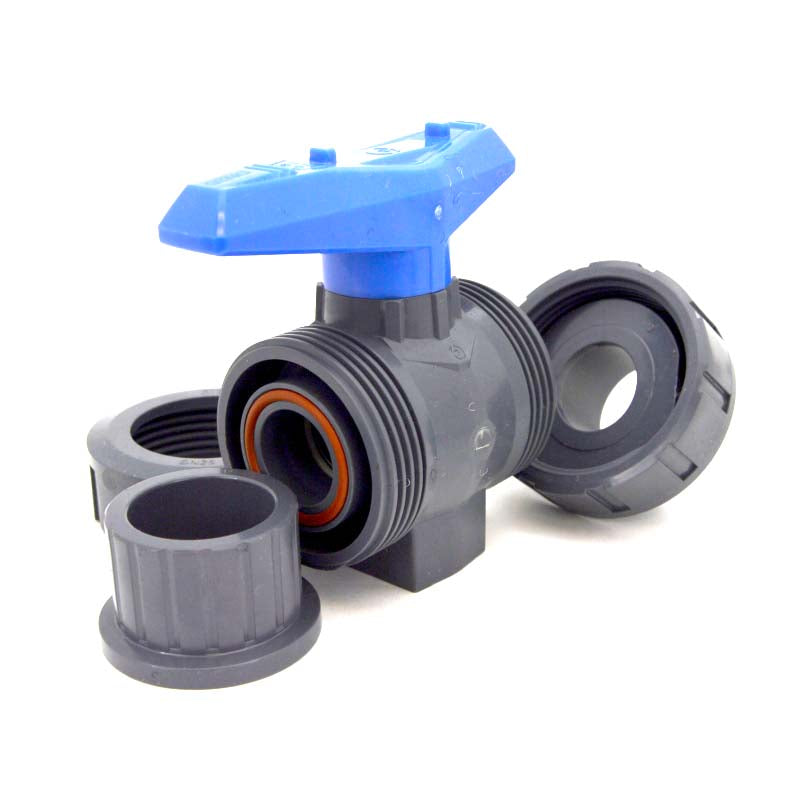

Ball valves are ideal for open/close liquid flow control jobs. The center ball can be turned to allow or block flow using the handle on top. This is a 1" nominal size PVC ball valve with True Union style ends. That means the ends can screw off to release the valve for cleaning or repair if needed. The ends can also be configured into a Socket x Socket, Socket x Threaded or Threaded x Threaded valve. Both Socket and Threaded end types are included with this valve.

Size: 1" (Fits 1" Nominal Size PVC Pipe)

Main Valve Material: PVC

Ball Seat Material: TPE

O-Ring Material: EPDM

End Type: Socket (ANSI) and Threaded (NPT) Ends Included

Working Pressure: 150 PSI

Operating Temperature: 140 F

Part Number: FP-S2-TUBV-ST-010
