Building a Dust Collection System with PVC Piping
|
|
Time to read 5 min
Table of contents
If you do any sort of carpentry or woodwork, you know how annoying sawdust can be. It gets in every nook and cranny and is an enormous hassle to clean up. For this reason, many shop owners set up a central dust collection system that is built into their shop. The idea is to prevent sawdust from making a mess by collecting it as soon as it's created. Building a dust collection system is easier said than done, however. To effectively collect dust, your central system must be hooked up to each piece of equipment.
Because so many different saws and shop appliances exist, dust collection adapters do not exist for every single one. In this case you may need to create your own dust collection piping. Doing this is not too difficult or expensive if you use the right parts. The least expensive piping you can get is PVC. Using PVC pipe for dust collection is cost-effective and easy if you follow a few guidelines. This post is based on a design by WoodMagazine.com. For more info on carpentry projects, check out their website!
Materials
The first step in building a dust collection system is to get the right materials. What you will need is as follows:
- Sch. 40 PVC Pipe: 4"-6", depending on the job

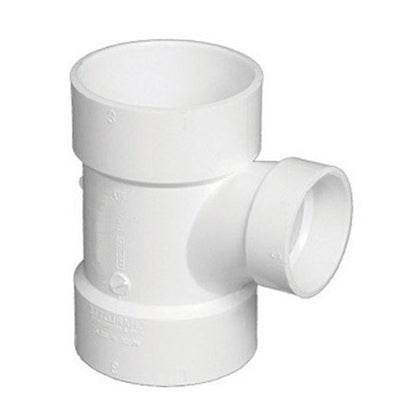

- PVC fittings (such as elbows) to help shape the system: Sch. 40 or DWV
- PVC valves (such as butterfly valves) to activate different sections of a branched system
- 1/4" plywood for joints
- Screws or bolts (not glue) so joints can be disassembled in case of a jam
- PVC cement for attaching fittings to pipe
- Strong glue to attach pipe or fittings to wood
Construction
I mentioned a "branched system" in the material list. A branched system is one that has multiple pipelines (or "branches") that go to different areas where dust will be created. If you have multiple saws in your shop, they could each have their own branch. To ensure maximum efficiency, PVC butterfly valves can be placed at the beginning of each branch and closed when that branch is not in use. This will make sure your branches perform independently without any loss in suction.
The difference in pipe sizes depends on what you are attaching your system to. If it is a saw that will produce a large amount of sawdust, you should, of course, use bigger pipe. PVC pipe used for a system like this should not exceed 6", though, as larger pipe sizes will decrease the power of the central system.
The actual construction of this system is highly modular and will be unique depending on the space. The most important part of it, however, are the joints. These are points where the system connects and can be serviced. If there is a backup or a jam in a system, you need an access point to unclog your system. PVC piping is typically attached to other PVC parts with PVC cement, a substance which chemically bonds the two parts to each other. That bond cannot be undone without damaging the PVC materials.
When using PVC pipe for dust collection, joints should be consist of wood and screws/bolts. This ensures that a system can be taken apart and serviced when necessary.
Static Electricity
In a dust collection piping system, one must always consider the dangers of static electricity. This is especially true when plastic piping, such as PVC, is being used. If static electricity is charged, it can be discharged in the form of dangerous sparks that will shock a user or even ignite the flammable sawdust inside the pipes. Preventing this from happening is not difficult!
Grounding a PVC piping system is a simple process that requires just a few inexpensive materials:
- Insulated or uninsulated 18- or 20-gauge copper wire; solid or stranded
- Bayonet connectors for joints (optional)
To ground your dust collection piping system, run your wire along or around the pipe throughout the system. This gives a place for built-up static electricity to be dispersed. At joints, you should either provide extra slack wire or install bayonet connectors. Attach one end of the wire to the metal housing or frame of the dust collector itself. Attach the other end to the end of the piping branch it is grounding; this keeps the wire in place.
With these guidelines and a bit of creativity, you will have an effective and efficient dust collection system.
Cost-Effective & Modular Materials: Schedule 40 or DWV PVC pipes (4" to 6" max diameter) and fittings provide an affordable, customizable alternative to metal ductwork.
Removable Joints & Valves: Use wood plates and screws (instead of PVC glue) at major joints so lines can be disassembled to clear clogs, and install butterfly valves on branched lines to direct suction where needed.
Essential Static Grounding: Running 18–20 gauge copper wire along the system and connecting it to the dust collector frame dissipates static electricity to prevent shocks or sawdust ignition.
FAQs
Why use PVC pipe instead of metal for a workshop dust collection system?
PVC pipe (typically Schedule 40 or DWV) is a cost-effective, lightweight, and accessible alternative to metal ducting. It allows woodworkers to build custom shop setups and adapters that easily route around shop layouts without expensive specialty metal fittings.
How do you prevent static electricity buildup and fire hazards in PVC dust lines?
Because moving sawdust through plastic pipe generates static electricity that could cause shocks or spark a fire, the system must be grounded. Ground it by wrapping or running an 18- or 20-gauge copper wire along the full length of the PVC pipe and connecting one end to the metal housing of your dust collector.
What pipe size should be used for a central dust collection network?
Most workshop applications use 4-inch to 6-inch PVC pipe. Avoid using pipes larger than 6 inches, as excessive diameter drastically reduces air velocity and suction power needed to draw sawdust through the branches.
Should PVC dust collection joints be glued together with PVC cement?
No, main pipe connections should be assembled using screws, bolts, or plywood collar joints rather than PVC cement. Using mechanical fasteners allows you to easily disassemble sections of the pipe system to clear clogs or modify your shop layout later.
