Actual part may differ slightly from image shown.

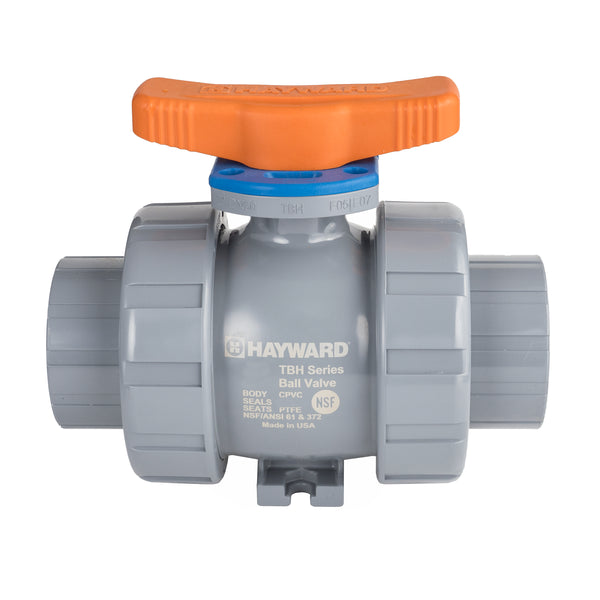

1-1/2" CPVC TBH Series Ball Valve, SOC/THD Ends, FPM Seals

The Hayward TBH Series 1-1/2" CPVC True Union Ball Valve with FPM seals is engineered for high-temperature, aggressively corrosive service. CPVC body and FPM elastomers resist concentrated acids, hydrocarbons, and chlorinated solvents at elevated temperatures. System2™ Sealing Technology, ISO 5211 top flange for direct actuator mounting, lock-out plate (up to 4 locks), reversible PTFE seats, double O-ring stem seals, true union socket/threaded end connectors. 250 PSI / PN16 at 70°F. Certified NSF/ANSI 61 & 372. Made in the USA.

Additional Info

Brand: Hayward Flow Control
Series: TBH Series True Union Ball Valves
Operator: Manual
Seal Material: FPM (FKM/Viton)
Size in Inches: 1-1/2 Inch
Connection Type: Socket/Threaded True Union
Material: CPVC
PSI: 250 PSI
Temp. Range: 210°F

PVC Fittings Online  |  SKU: TBH2150ASTV0000

1-1/2" CPVC TBH Series Ball Valve, SOC/THD Ends, FPM Seals

Hayward 1-1/2" CPVC TBH Series True Union Ball Valve with FPM seals — maximum chemical resistance at elevated temperatures. Rated 250 PSI at 70°F, temperature rated to 210°F. ISO 5211 actuator-ready, lock-out/tag-out capable. NSF/ANSI 61 & 372 certified. Made in the USA.
$155.00
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
Hayward 1-1/2" CPVC TBH Series True Union Ball Valve with FPM seals — maximum chemical resistance at elevated temperatures. Rated 250 PSI at 70°F, temperature rated to 210°F. ISO 5211 actuator-ready, lock-out/tag-out capable. NSF/ANSI 61 & 372 certified. Made in the USA.

Bulk orders? Get a quote over $1000

Description

The Hayward TBH Series 1-1/2" CPVC True Union Ball Valve with FPM seals is engineered for high-temperature, aggressively corrosive service. CPVC body and FPM elastomers resist concentrated acids, hydrocarbons, and chlorinated solvents at elevated temperatures. System2™ Sealing Technology, ISO 5211 top flange for direct actuator mounting, lock-out plate (up to 4 locks), reversible PTFE seats, double O-ring stem seals, true union socket/threaded end connectors. 250 PSI / PN16 at 70°F. Certified NSF/ANSI 61 & 372. Made in the USA.

Additional Info
Brand: Hayward Flow Control
Series: TBH Series True Union Ball Valves
Operator: Manual
Seal Material: FPM (FKM/Viton)
Size in Inches: 1-1/2 Inch
Connection Type: Socket/Threaded True Union
Material: CPVC
PSI: 250 PSI
Temp. Range: 210°F
