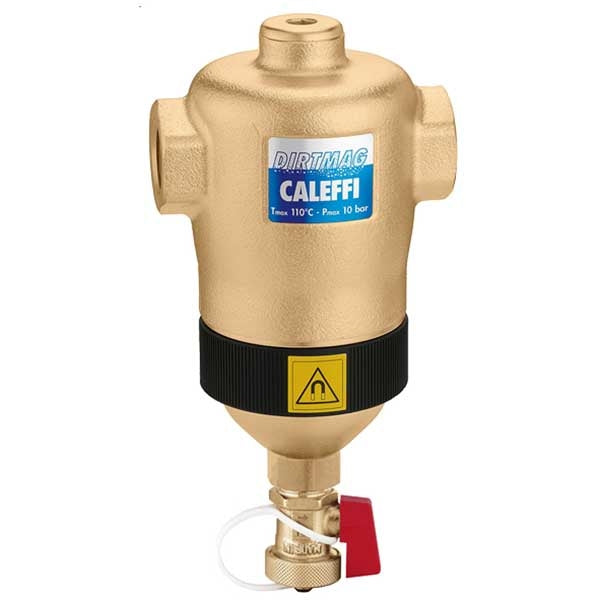

1 1/4" Dirt Separator w/ Magnet - Sweat (546335A)

1 1/4" Dirt Separator w/ Magnet - Sweat. The versatile DIRTMAG® magnetic dirt separator removes both magnetic and non-magnetic particles continuously. In addition to removing sand and rust impurities with a glass-reinforced nylon internal element in a low-velocity zone chamber, the DIRTMAG® features a powerful removable external magnet around the body below the flow line for fast and effective capture of ferrous particles. The DIRTMAG® has the magnet positioned externally to maintain low pressure loss, and removes up to 100% of the ferrous impurities that can form in a hydronic system. The DIRTMAG® can be fitted with optional insulated covers, code CBN5462xx series purchased separately, to minimize heat loss. We carry this and many other sizes. Don't see the part you need? Give us a call today!

Product Type: Pressure Reducing Valve (PRV)

Size: 1-1/4"

Material: Brass Body

Max. Working Pressure: 150 psi.

Max. working temperature Range: 32 - 250°F.

Particle Separation Capacity: to 5 ﾵm (0.2 mil).

Ferrous impurities separation efficiency: 100%.

SKU: 546335A
