Actual part may differ slightly from image shown.

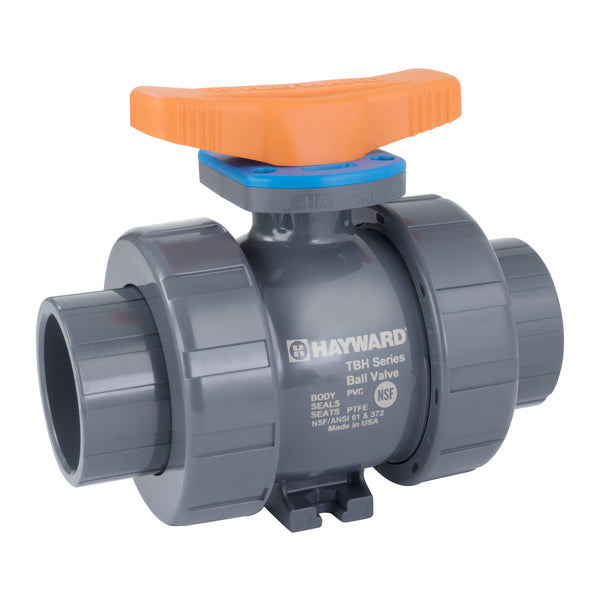

1/2" PVC TBH Series Ball Valve SOC/THD Ends, FPM Seals

The Hayward TBH Series 1/2" PVC True Union Ball Valve with FPM (Viton®) seals offers excellent resistance to concentrated acids, hydrocarbons, and aggressive chemicals. System2™ Sealing Technology provides dual-seat protection for superior bubble-tight shutoff. Full-port bi-directional design rated 250 PSI / PN16 at 70°F. ISO 5211 mounting pad, integral lock-out plate (up to 4 locks), reversible PTFE seats, double O-ring stem seals, true union socket/threaded end connectors. NSF/ANSI 61 & 372 certified. Made in the USA.

Additional Info

Brand: Hayward Flow Control
Series: TBH Series True Union Ball Valves
Operator: Manual
Seal Material: FPM (FKM/Viton)
Size in Inches: 1/2 Inch
Connection Type: Socket/Threaded True Union
Material: PVC
PSI: 250 PSI
Temp. Range: 140°F

PVC Fittings Online  |  SKU: TBH1050ASTV0000

1/2" PVC TBH Series Ball Valve SOC/THD Ends, FPM Seals

Hayward 1/2" PVC TBH Series True Union Ball Valve with FPM (Viton) seals for aggressive chemical service. Full-port design rated 250 PSI at 70°F with System2™ Sealing Technology. ISO 5211 actuator-ready, lock-out/tag-out capable. NSF/ANSI 61 & 372 certified. Made in the USA.
$45.00
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
Hayward 1/2" PVC TBH Series True Union Ball Valve with FPM (Viton) seals for aggressive chemical service. Full-port design rated 250 PSI at 70°F with System2™ Sealing Technology. ISO 5211 actuator-ready, lock-out/tag-out capable. NSF/ANSI 61 & 372 certified. Made in the USA.

Bulk orders? Get a quote over $1000

Description

The Hayward TBH Series 1/2" PVC True Union Ball Valve with FPM (Viton®) seals offers excellent resistance to concentrated acids, hydrocarbons, and aggressive chemicals. System2™ Sealing Technology provides dual-seat protection for superior bubble-tight shutoff. Full-port bi-directional design rated 250 PSI / PN16 at 70°F. ISO 5211 mounting pad, integral lock-out plate (up to 4 locks), reversible PTFE seats, double O-ring stem seals, true union socket/threaded end connectors. NSF/ANSI 61 & 372 certified. Made in the USA.

Additional Info
Brand: Hayward Flow Control
Series: TBH Series True Union Ball Valves
Operator: Manual
Seal Material: FPM (FKM/Viton)
Size in Inches: 1/2 Inch
Connection Type: Socket/Threaded True Union
Material: PVC
PSI: 250 PSI
Temp. Range: 140°F
