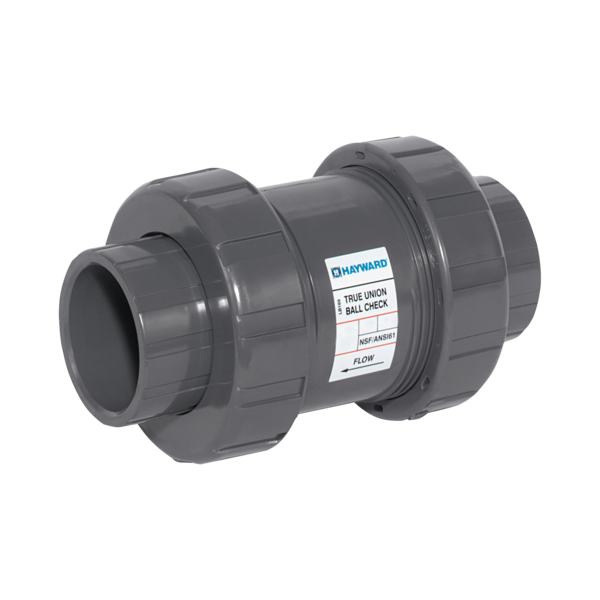

Actual part may differ slightly from image shown.

1/2" PVC True Union Ball Check Valves w/FPM o-rings; Socket/Threaded End connections

The Hayward TC Series 1/2" PVC True Union Ball Check Valve with FPM o-rings is designed for backflow prevention in aggressive chemical service. FPM elastomers resist acids, hydrocarbons, and chlorinated compounds. Sure Block design with square-cut seat for consistent cracking pressure. True union construction for in-line maintenance. Horizontal or vertical (flow-up) installation. Socket and threaded end connectors included. 150 PSI non-shock at 70°F. NSF/ANSI 61 & 372 listed. Made in the USA.

Additional Info

Brand: Hayward Flow Control
Series: TC Series True Union Ball Check Valves
Seal Material: FPM (FKM/Viton)
Size in Inches: 1/2 Inch
Connection Type: Socket/Threaded True Union
Material: PVC
PSI: 150 PSI
Temp. Range: 140°F

PVC Fittings Online  |  SKU: TC10050ST

1/2" PVC True Union Ball Check Valves w/FPM o-rings; Socket/Threaded End connections

Hayward 1/2" PVC TC Series True Union Ball Check Valve with FPM o-rings for aggressive chemical service. Sure Block design with square-cut seat for positive backflow prevention. Installs horizontally or vertically (flow-up). Rated 150 PSI at 70°F. NSF/ANSI 61 & 372 listed.
$56.67
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
Hayward 1/2" PVC TC Series True Union Ball Check Valve with FPM o-rings for aggressive chemical service. Sure Block design with square-cut seat for positive backflow prevention. Installs horizontally or vertically (flow-up). Rated 150 PSI at 70°F. NSF/ANSI 61 & 372 listed.

Bulk orders? Get a quote over $1000

Description

The Hayward TC Series 1/2" PVC True Union Ball Check Valve with FPM o-rings is designed for backflow prevention in aggressive chemical service. FPM elastomers resist acids, hydrocarbons, and chlorinated compounds. Sure Block design with square-cut seat for consistent cracking pressure. True union construction for in-line maintenance. Horizontal or vertical (flow-up) installation. Socket and threaded end connectors included. 150 PSI non-shock at 70°F. NSF/ANSI 61 & 372 listed. Made in the USA.

Additional Info
Brand: Hayward Flow Control
Series: TC Series True Union Ball Check Valves
Seal Material: FPM (FKM/Viton)
Size in Inches: 1/2 Inch
Connection Type: Socket/Threaded True Union
Material: PVC
PSI: 150 PSI
Temp. Range: 140°F

Not Familiar with PVC?

Check Out Our PVC Pipe Size Guide Here

See guide
