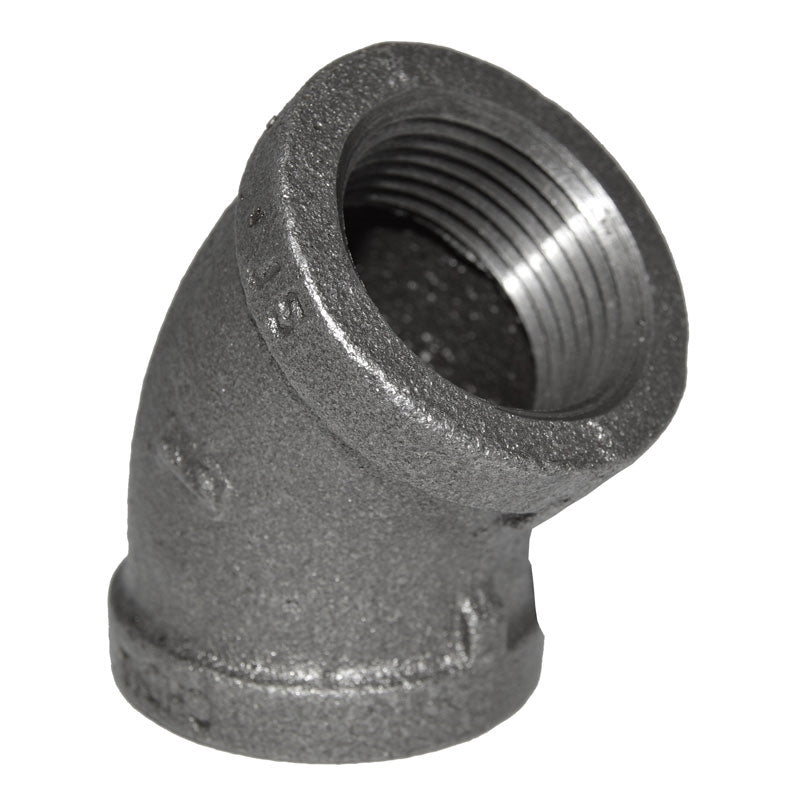

1" Black Malleable Iron 45 Elbow (BM451 / 35206)

Black Iron 45 Elbow

The BM451 is a 1" Black Malleable Iron 45 Elbow fitting with two 1" female-threaded connections. This fitting lets the user change the direction of a pipeline by 45 degrees, which can be extremely helpful when installing gas or oil lines in walls or any confined space. Installation of this black iron 45-degree elbow fitting is simple, as it does not require any welding or soldering. An inexpensive thread sealant will be required for a watertight seal. Black iron is resistant to pressure, heat, and corrosion, so it is most often found in gas and oil systems.

Product Specifications:

• Size: 1" x 1"
• Connection: FPT x FPT
• Material: Black Malleable Iron (Mild Steel)
• Max Temperature: 500°F
• Threads: ASME B1.20.1, ISO 7-1
• Certifications: cULus, FM, UPC, ISO9001, CRN
