PVC Fittings Online  |  SKU: HRTN8870-4390-25

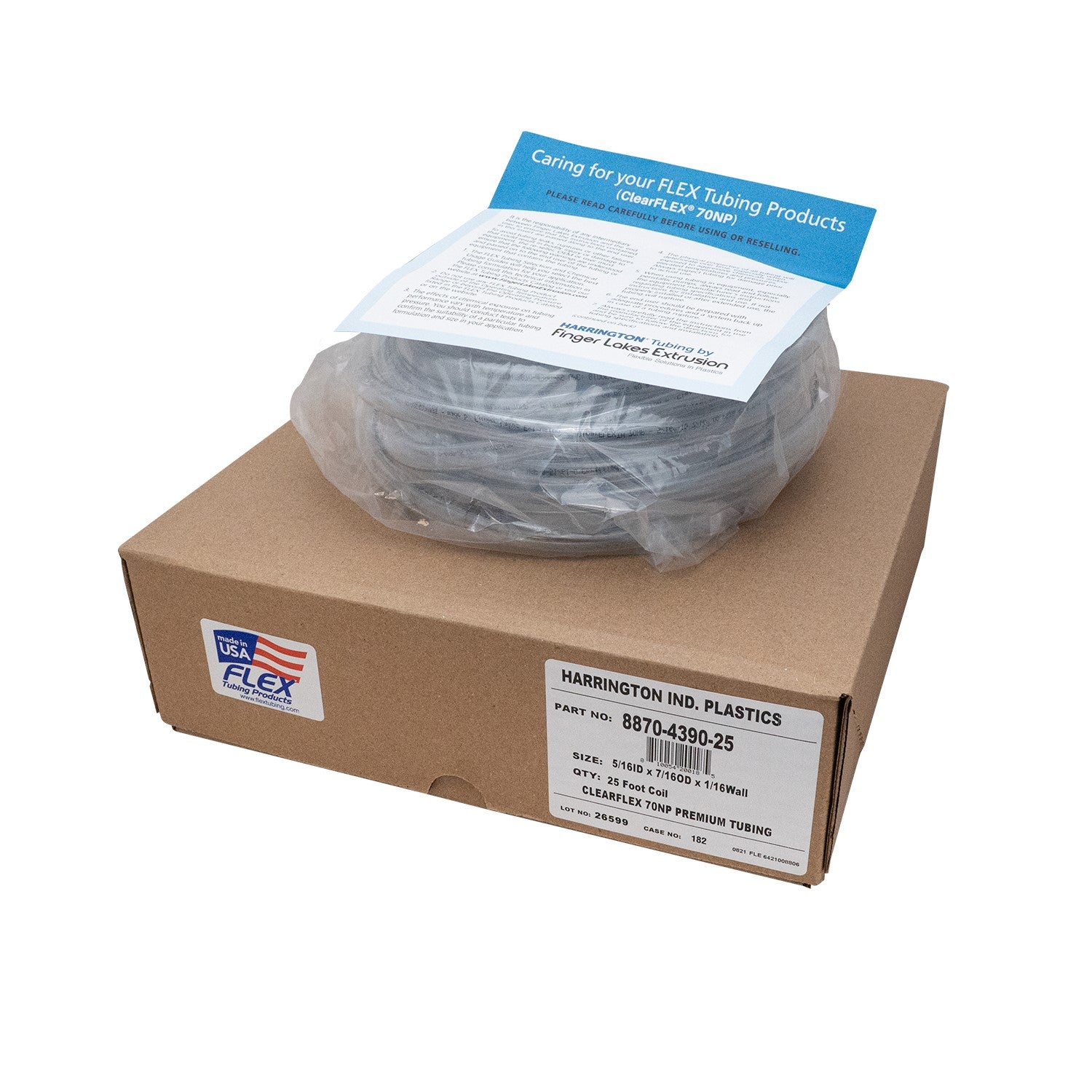

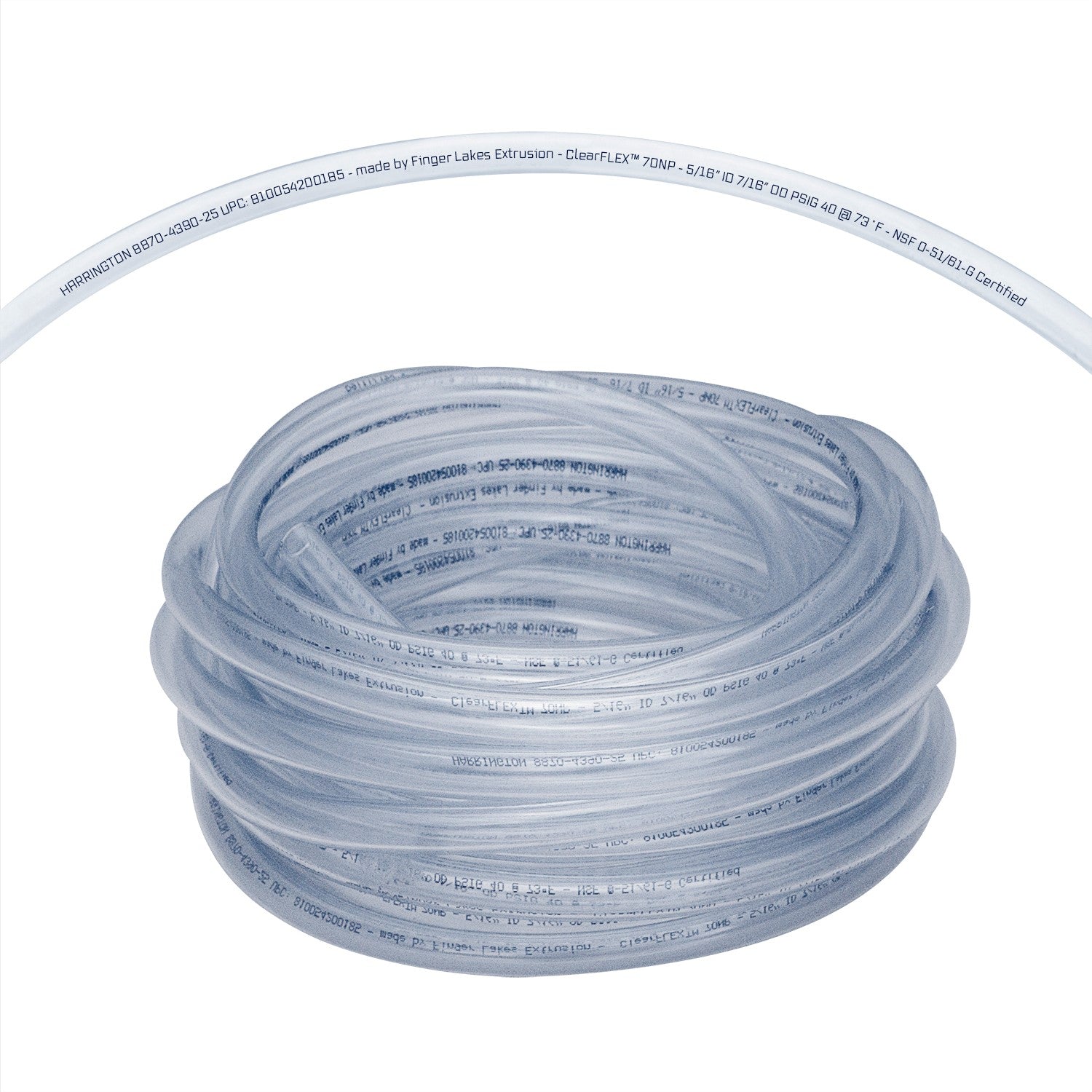

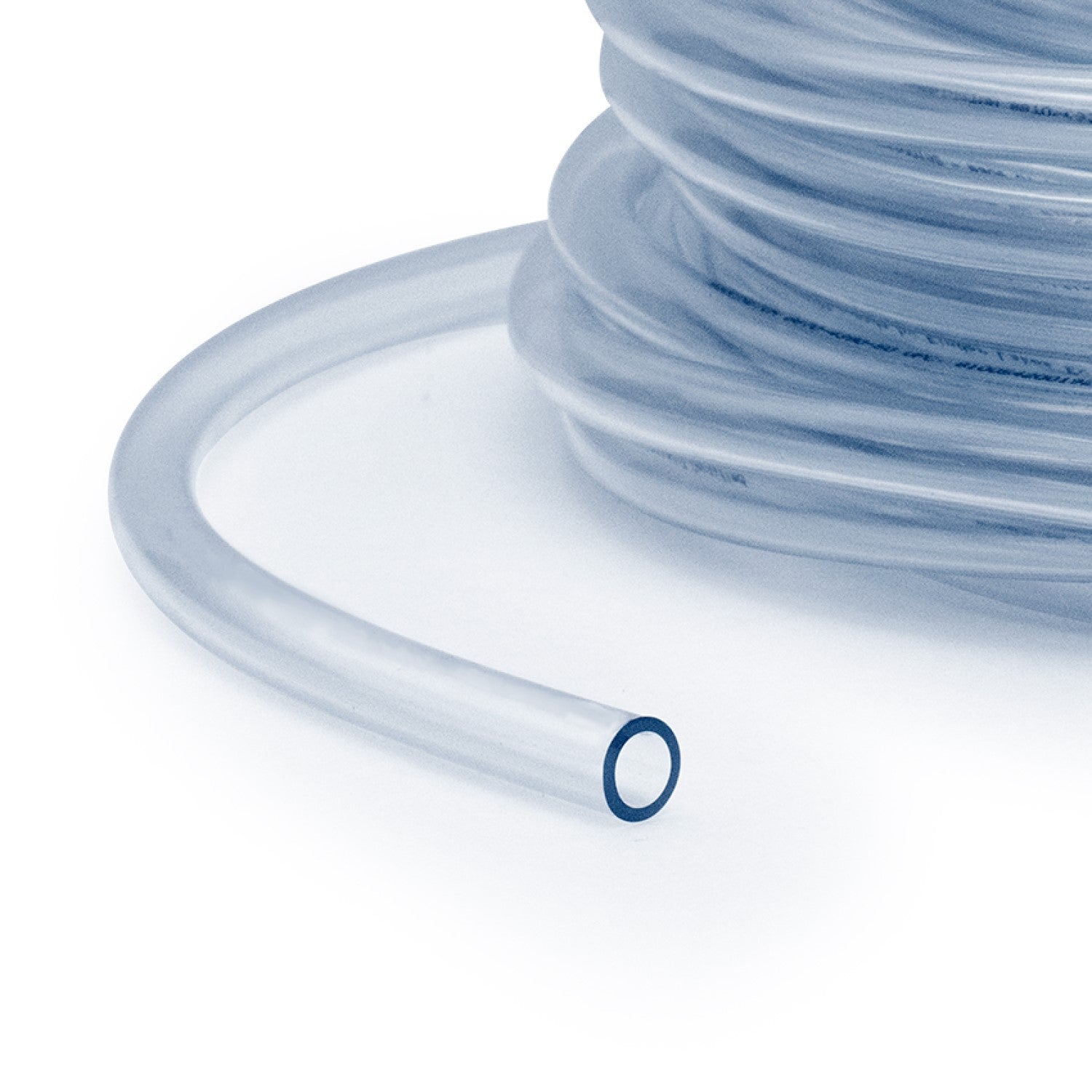

25 feet 5/16"ID 7/16"OD ClearFLEX 70NP Premium Non-Phthalate Multipurpose PVC Clear Plastic Tubing -HRTN8870-4390-25

Made in USA Food Grade For Brewing, Beer Line, Kegerator, Wine Making, Aquarium
$9.00
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.



Actual part may differ slightly from image shown.

Description

The ClearFLEX 70NP non-phthalate product line is made from a 70-durometer flexible PVC compound that is bovine-free and formulated with a unique non-DEHP, non-phthalate plasticizer for use in food and beverage applications, the transfer of milk products and medical devices where the presence of phthalates is undesirable.
  • Flexible and easy to install
  • Fits around corners - minimizes couplings
  • Clear for visual inspection and flow control
  • Will not impart taste or odors
  • Non-Toxic
  • Glass-like clarity for visual inspection and flow control
Typical Applications:
  • Applications where non-Phthalate tubing is required
  • Transfer of foods, beverages, syrups, cooking oils, flavor extracts and preservatives
  • Blood transfer lines and other medical devices
  • Transfer of milk and milk products
  • Vitamins & Supplement
  • General Laboratory
  • Brewery & Winery
  • Pharmaceutical
Chemical Resistance (Ratings for Ideal Conditions 73°F / 25°C):
  • Strong Mineral Acids - Fair
  • Organic Acids - Good
  • Weak Acids - Excellent
  • Bases (Weak) - Excellent
  • Bases (Strong) - Good
  • Solvents - Not Recommended
All ClearFLEX 70NP Tubing Products Offer the Following:
  • Acceptable for food contact by the following standard: Every substance selected to formulate the items below is either "generally recognized as safe" (GRAS), prior-sanctioned, subject to an effective Food Contact Notification (FCN), subject to a Threshold of Regulation (TOR) exemption, or identified on one or more following sections of Title 21 of the Code of Federal Regulations published by the U.S. Food and Drug Administration (FDA): 181.5, 181.27, 178.2010, 172.860, 174.5
  • The ingredients in this compound allow distributors and end-users to market its use not only in the USA, but also in Europe
  • Meets RoHS and REACH standards; Does not contain any substances listed on Proposition 65
  • Meets the requirements of the U.S. Pharmacopoeia Class VI Biological Tests for Plastics
  • Meets ISO 10993 and complies with USDA standards
  • UL94 testing verified for level HB and V-1
  • NSF-51 & NSF-61 certified

Additional Info

Series: ClearFlex 70NP
Color: clear
Maximum Operating Temperature: 175°F
Tube Length: 25 ft

Not Familiar with PVC?

Check Out Our PVC Pipe Size Guide Here
