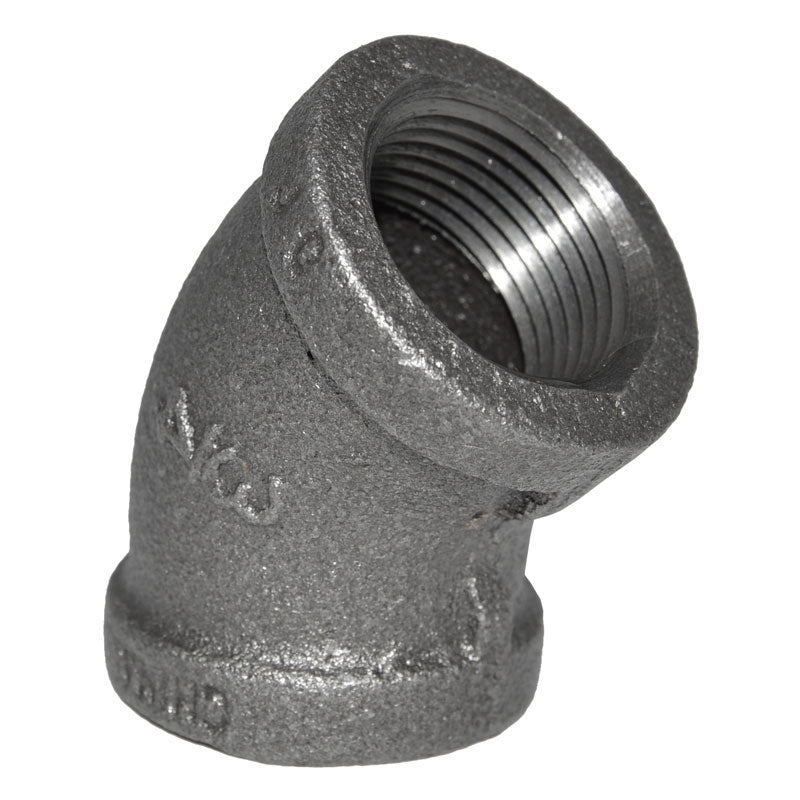

3/4" Black Malleable Iron 45 Elbow (BM4534 / 35205)
Black Iron 45 Elbows
The BM4534 is a 3/4" Black Malleable Iron 45 Elbow fitting with two 3/4" female-threaded connections. This fitting lets the user change the direction of a pipeline by 45 degrees, which can be extremely helpful when installing gas or oil lines in walls or any confined space. Installation of this black iron 45-degree elbow fitting is simple, as it does not require any welding or soldering. An inexpensive thread sealant will be required for a watertight seal. Black iron is resistant to pressure, heat, and corrosion, so it is most often found in gas and oil systems.
Product Specifications:
- Size: 3/4" x 3/4"
- Connection: FPT x FPT
- Material: Black Malleable Iron (Mild Steel)
- Max Temperature: 500°F
- Threads: ASME B1.20.1, ISO 7-1
- Certifications: cULus, FM, UPC, ISO9001, CRN
Additional Info
3/4" Black Malleable Iron 45 Elbow (BM4534 / 35205)
3/4" Black Malleable Iron 45 Elbow (BM4534 / 35205) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Black Iron 45 Elbows
The BM4534 is a 3/4" Black Malleable Iron 45 Elbow fitting with two 3/4" female-threaded connections. This fitting lets the user change the direction of a pipeline by 45 degrees, which can be extremely helpful when installing gas or oil lines in walls or any confined space. Installation of this black iron 45-degree elbow fitting is simple, as it does not require any welding or soldering. An inexpensive thread sealant will be required for a watertight seal. Black iron is resistant to pressure, heat, and corrosion, so it is most often found in gas and oil systems.
Product Specifications:
- Size: 3/4" x 3/4"
- Connection: FPT x FPT
- Material: Black Malleable Iron (Mild Steel)
- Max Temperature: 500°F
- Threads: ASME B1.20.1, ISO 7-1
- Certifications: cULus, FM, UPC, ISO9001, CRN
