PVC Fittings Online | SKU: 01718501I

3/4" IPS Brass Gate Valve - 01718501I

Name: 3/4" IPS Brass Gate Valve - 01718501I
Brand: PVC Fittings Online
SKU: 01718501I
Price: 12.75 USD
Availability: InStock

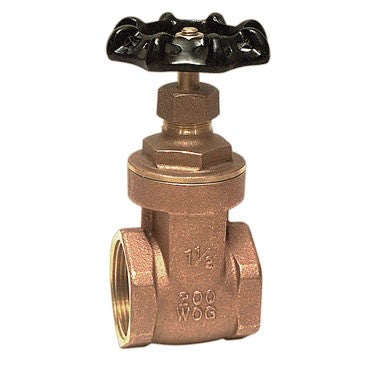

3/4 inch Cast Brass Gate Valve - Threaded Ends

$12.75

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This 3/4" IPS brass gate valve is a cost-effective choice for adding an on/off valve to your line. Works by raising and lowering a disc that blocks or allows flow. This model from the 8501 series has a non rising brass stem and a screwed in bonnet. 200lb. WOG, 125 lbs. WSP. See our other sizes, too. Up to 2"!

Port: Full port (1/4 - 3)

Material: Cast Brass

End Type: Threaded

Pressure: 200 lb WOG, 125 lb WSP

Features: Screwed in bonnet, non-rising brass stem

Standards: Approved to ANSI/NSF 61-8

Make: ISO 9001:2008 Manufacturer

Product contains brass which does not meet federal and state requirements for drinking water.
