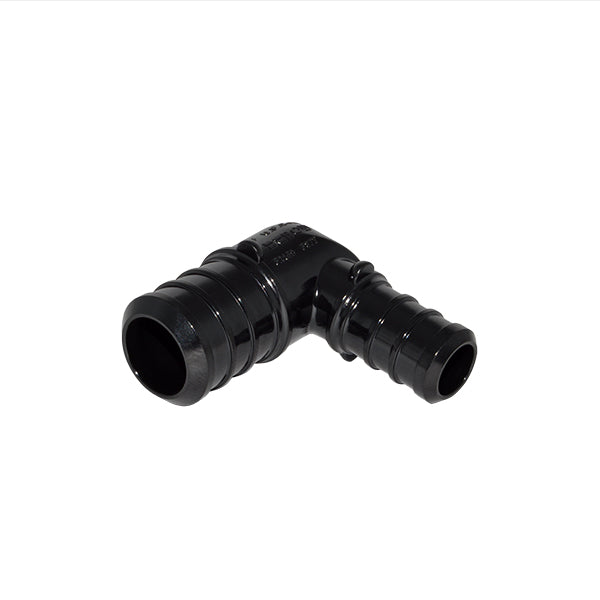

Polyalloy Elbows for PEX Systems

When you need to make PEX connections that change direction, you can use a Polyalloy 90-Degree Elbow. Unlike traditional DZR brass fittings, which are susceptible to corrosion over time, our Advanced Polymer (plastic) fittings are extremely resistant to corrosive environments. This 3/4" x 1/2" Polyalloy 90-Degree Elbow should be used with 3/4" and 1/2" PEX tubing and is typically used in conjunction with copper crimp rings or stainless steel clamp rings. This fitting maintains a tight seal and resists corrosion due to its state-of-the-art plastic alloy construction. The maximum working pressure/temperature is 200 PSI/200°F, so this coupling will hold up in high pressure, hot water applications.

Product Specifications:

• Size: 3/4" x 1/2"
• Connections: Barb x Barb
• Material: Plastic Polysulfone
• Max Pressure: 200 PSI
• Max Temperature: 200°F
• Compatibilities: 3/4" & 1/2" PEX Tubing
