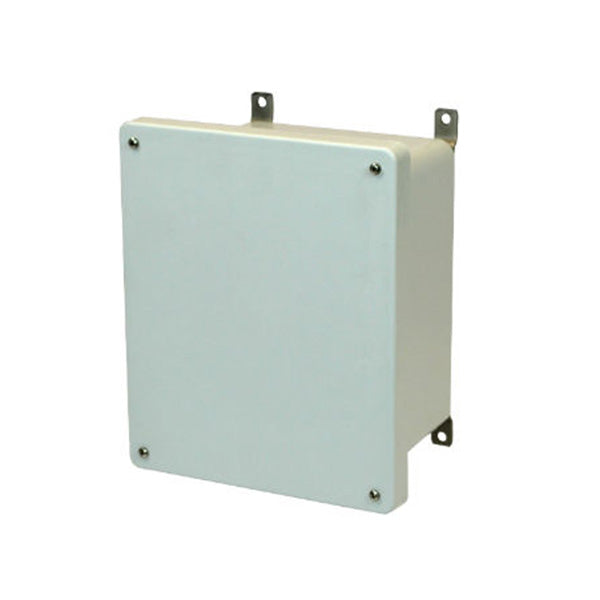

AM1084 10x8x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover

Name: AM1084 10x8x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover
Brand: PVC Fittings Online
SKU: AM1084
Price: 107.23 USD
Availability: InStock

AM Series JIC Size Junction Box - Lift-Off Screw Cover - Part AM1084

Allied Moulded enclosures have a 4-6 week lead time.

$107.23

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This Allied Moulded electrical enclosure is made of fiberglass and has a lift-off screw cover. The JIC size junction box is made of tough, molded Ultraguard fiberglass-reinforced polyester. This box also features stainless steel cover screws and is effective for outdoor use with UV stabilization. The tough design of this Allied enclosure can protect your equipment from high temperatures and corrosive applications.

Additional Info

Part Number: AM1084

Box Dimensions: 10" (H), 8" (W), 4" (D)

Cover Type: Opaque

Cover/Base Material: Ultraguard® Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339840008

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13 CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 6P, 12, and 13

Compliance: NEMA Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13 - IEC 60529 Type IP66, and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet or 1.8m)

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
