PVC Fittings Online | SKU: AM1084H

AM1084H 10x8x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover

Name: AM1084H 10x8x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover
Brand: PVC Fittings Online
SKU: AM1084H
Price: 118.85 USD
Availability: InStock

AM Series JIC Size Junction Box - Hinged Screw Cover - Part AM1084H

Allied Moulded enclosures have a 4-6 week lead time.

$118.85

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

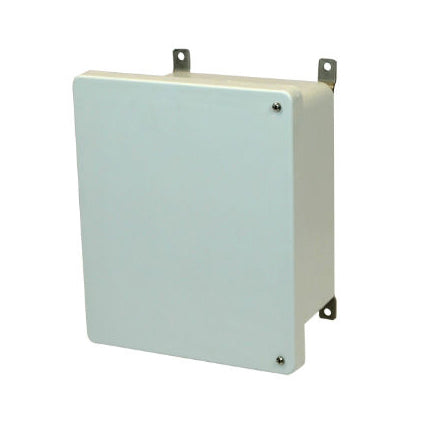

Actual part may differ slightly from image shown.

Description

This electrical enclosure box was created by Allied Moulded and features Ultraguard reinforced fiberglass to resist the effects of UV exposure, plus discoloration and yellowing. This enclosure is part of the AM series and features a hinged screw cover. This product has a NEMA 4X rating for indoor and outdoor use.

Additional Info

Related Documents: Not Available

Part Number: AM1084H

Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)

Cover Type: Opaque

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339840015

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
