PVC Fittings Online  |  SKU: AM1084HP9

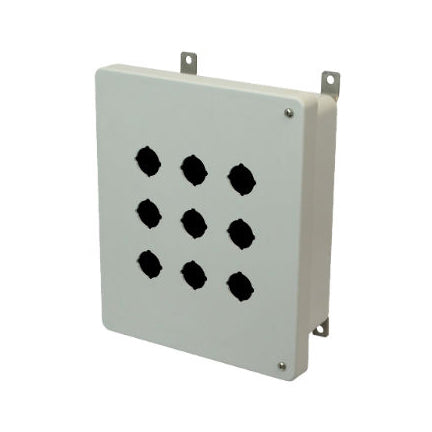

AM1084HP9 10x8x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 9 PB Cutouts 30.5MM

AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part AM1084HP9

Allied Moulded enclosures have a 4-6 week lead time.

$169.19
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This electrical enclosure box is part of Allied Moulded's AM series. With over 50 years of experience in fiberglass molding, Allied is the finest in the industry. This box features a hinged screw cover and is available in standard or light gray color. These fiberglass boxes are easy to customize, punch, drill, and saw.

Additional Info
Related Documents: Not Available
Part Number: AM1084HP9
Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)
Cover Type: Pushbutton
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Screw Cover
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 6
UPC Code: 85339840329
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Fastener Material: 300 Series Stainless Steel
