PVC Fittings Online | SKU: AM1084L

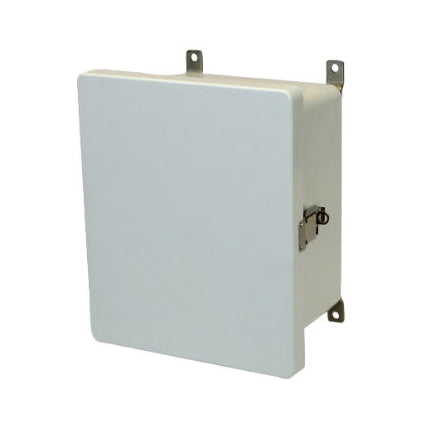

AM1084L 10x8x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover

Name: AM1084L 10x8x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover
Brand: PVC Fittings Online
SKU: AM1084L
Price: 144.11 USD
Availability: InStock

AM Series JIC Junction Box with Snap-Latch Hinged Cover - Part: AM1084L

Allied Moulded enclosures have a 4-6 week lead time.

$144.11

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

All Allied Moulded enclosures are rated for indoor and outdoor use. This electrical enclosure is part of the AM series of enclosures and features a snap latch hinged cover. Allied boxes are easy to mount on a wall, machine, or even a pole. They are also designed to resist extreme temperatures and have flame-retardant properties.

Additional Info

Related Documents: Not Available

Part Number: AM1084L

Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)

Cover Type: Opaque

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Quick-Release Latch

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339840022

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13 CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
