PVC Fittings Online  |  SKU: AM1084P9

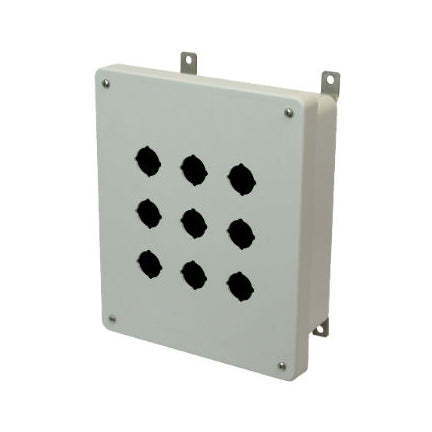

AM1084P9 10x8x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover 9 PB Cutouts 30.5MM

AM Series Pushbutton Enclosure with Multi-Hole Lift-Off Screw Cover - Part: AM1084P9

Allied Moulded enclosures have a 4-6 week lead time.

$141.34
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
If you want to protect your electrical equipment from salt, water, chemicals, and more, you need an Allied electrical enclosure. This product's tough fiberglass design can hold up in demanding environments like chemical plants, oil refineries, and irrigation systems. This box features a lift-off screw cover and is easy to mount on a wall, machine, or even a pole.

Additional Info
Related Documents: Not Available
Part Number: AM1084P9
Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)
Cover Type: Pushbutton
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Screw Cover
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 6
UPC Code: 85339840312
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Fastener Material: 300 Series Stainless Steel
