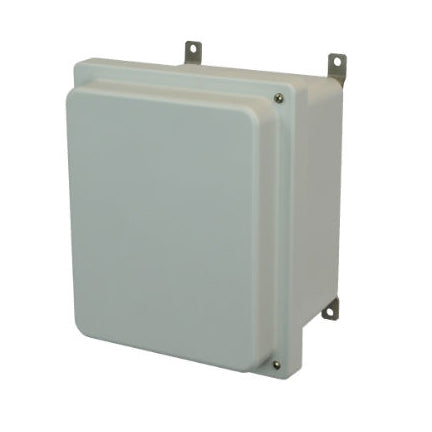

AM1084RH 10x8x4 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover

Allied Moulded invests time and research into developing the best electrical enclosures on the market. It has a NEMA 4X rating, so it will protect against rain, sleet, snow, dirt, and more. This enclosure is part of Allied Moulded's AM-R series. This box's fiberglass design is tough enough for chemical plants, oil refineries, and irrigation systems. This product features a hinged screw cover.

Additional Info

Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AM1084RH
Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)
Cover Type: Opaque
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Screw Cover
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339840091
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Aluminum HFP: HFP108 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT8
Fastener Material: 300 Series Stainless Steel

PVC Fittings Online  |  SKU: AM1084RH

AM1084RH 10x8x4 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover

AM-R Series JIC Size Junction Box with Hinged Screw Cover - Part: AM1084RH

Allied Moulded enclosures have a 4-6 week lead time.

$129.64
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AM-R Series JIC Size Junction Box with Hinged Screw Cover - Part: AM1084RH

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Allied Moulded invests time and research into developing the best electrical enclosures on the market. It has a NEMA 4X rating, so it will protect against rain, sleet, snow, dirt, and more. This enclosure is part of Allied Moulded's AM-R series. This box's fiberglass design is tough enough for chemical plants, oil refineries, and irrigation systems. This product features a hinged screw cover.

Additional Info
Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AM1084RH
Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)
Cover Type: Opaque
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Screw Cover
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339840091
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Aluminum HFP: HFP108 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT8
Fastener Material: 300 Series Stainless Steel
