PVC Fittings Online | SKU: AM1084RL

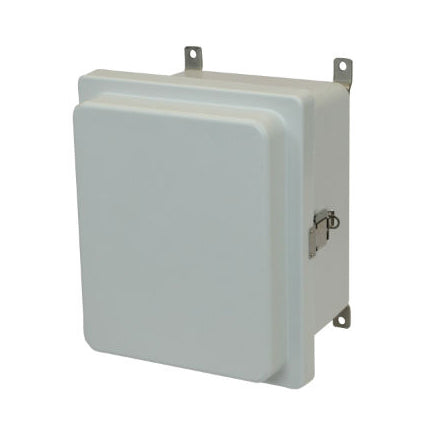

AM1084RL 10x8x4 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover

Name: AM1084RL 10x8x4 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover
Brand: PVC Fittings Online
SKU: AM1084RL
Price: 153.69 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover - Part: AM1084RL

Allied Moulded enclosures have a 4-6 week lead time.

$153.69

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Over 50 years of fiberglass molding knowledge is brought to the table in Allied Moulded's time-tested product line. Their tough fiberglass enclosures can stand up to the most demanding environments. This product is part of Allied Moulded's AM-R series and features a snap latch hinged cover.

Additional Info

Related Documents: Not Available

Part Number: AM1084RL

Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)

Cover Type: Opaque

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Quick-Release Latch

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 7

UPC Code: 85339840107

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13 CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Aluminum HFP: HFP108 Key-lock Kit: AMKEYLOCKRC Key-lock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
