Actual part may differ slightly from image shown.

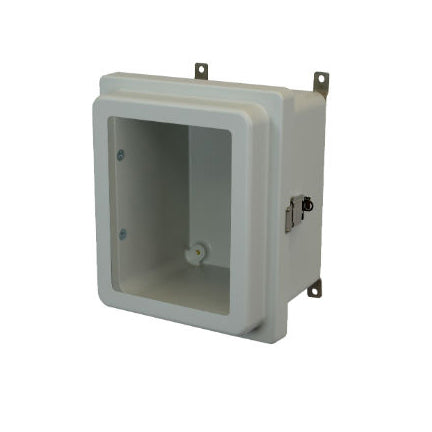

AM1084RLW 10x8x4 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover Window

This Allied Moulded enclosure will protect your electrical equipment from salt, water, chemicals, and more. Its fiberglass is a fraction of the cost of heavy and hard-to-use stainless steel enclosures while still being resistant to extreme temperatures. This box is part of Allied Moulded's AM-R series and features a snap latch hinged cover.

Additional Info

Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AM1084RLW
Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)
Cover Type: Window
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Quick-Release Latch
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339840145
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Aluminum HFP: HFP108 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT8
Fastener Material: 300 Series Stainless Steel

PVC Fittings Online  |  SKU: AM1084RLW

AM1084RLW 10x8x4 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover Window

AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover and Window - Part: AM1084RLW

Allied Moulded enclosures have a 4-6 week lead time.

$247.38
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover and Window - Part: AM1084RLW

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
This Allied Moulded enclosure will protect your electrical equipment from salt, water, chemicals, and more. Its fiberglass is a fraction of the cost of heavy and hard-to-use stainless steel enclosures while still being resistant to extreme temperatures. This box is part of Allied Moulded's AM-R series and features a snap latch hinged cover.

Additional Info
Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AM1084RLW
Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)
Cover Type: Window
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Quick-Release Latch
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339840145
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Aluminum HFP: HFP108 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT8
Fastener Material: 300 Series Stainless Steel
