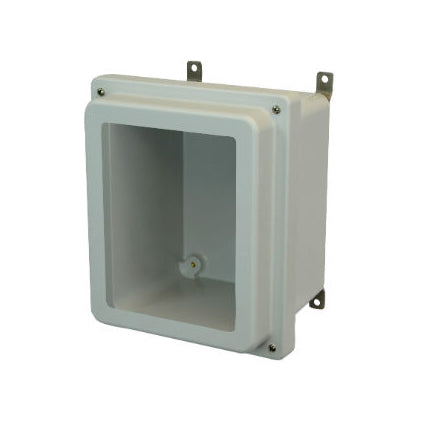

AM1084RW 10x8x4 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window

Name: AM1084RW 10x8x4 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1084RW
Price: 213.08 USD
Availability: InStock

AM-R Series JIC Size Junction Boxes with Lift-Off Screw Cover and Window - Part: AM1084RW

Allied Moulded enclosures have a 4-6 week lead time.

$213.08

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied enclosures are made from a unique Ultraguard formulation of fiberglass reinforced polyester. They resist extreme temperatures and have flame-retardant properties. This enclosure is part of Allied Moulded's AM-R series and features a lift-off screw cover. All Allied enclosures are rated for indoor and outdoor use.

Additional Info

Related Documents: Not Available

Part Number: AM1084RW

Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)

Cover Type: Window

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 7

UPC Code: 85339840121

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Aluminum HFP: HFP108 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
