PVC Fittings Online | SKU: AM1084T

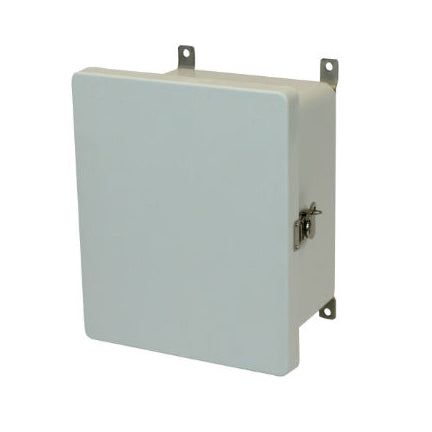

AM1084T 10x8x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover

Name: AM1084T 10x8x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover
Brand: PVC Fittings Online
SKU: AM1084T
Price: 144.11 USD
Availability: InStock

AM Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM1084T

Allied Moulded enclosures have a 4-6 week lead time.

$144.11

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This enclosure is part of Allied Moulded's AM series, which are all rated for indoor and outdoor use. It comes standard in a light gray color with other colors available. This product, which features a twist latch hinged cover, will protect your electrical equipment from salt, water, chemicals, and more.

Additional Info

Related Documents: Not Available

Part Number: AM1084T

Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)

Cover Type: Opaque

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Twist Latch

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339840039

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13 CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
