PVC Fittings Online | SKU: AM1084W

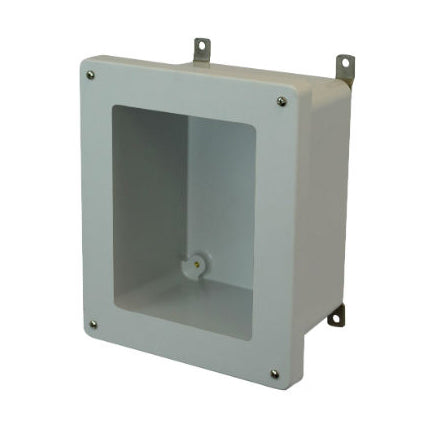

AM1084W 10x8x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window

Name: AM1084W 10x8x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1084W
Price: 199.14 USD
Availability: InStock

AM Series JIC Size Junction Box - Hinged Screw Cover - Part: AM1084W

Allied Moulded enclosures have a 4-6 week lead time.

$199.14

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Trust Allied Moulded for a corrosion-resistant electrical enclosure that is affordable and made to last. Allied Moulded has invested over 50 years of time and research into developing the best reinforced fiberglass material on the market. This product is part of Allied Moulded's AM series and features a hinged screw cover. These enclosures are also resistant to extreme temperatures and are designed with flame retardant properties.

Additional Info

Related Documents: Not Available

Part Number: AM1084W

Box Dimensions: 10.14" (H), 8.26" (W), 4" (D)

Cover Type: Window

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339840046

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
