AM1086 10x8x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover

Name: AM1086 10x8x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover
Brand: PVC Fittings Online
SKU: AM1086
Price: 109.96 USD
Availability: InStock

AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM1086

Allied Moulded enclosures have a 4-6 week lead time.

$109.96

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

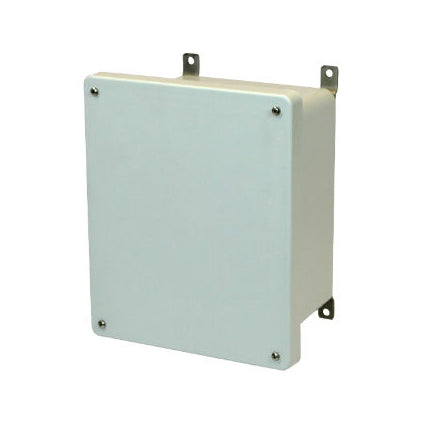

This box, made by Allied Moulded, was specifically designed for electrical equipment. This enclosure is part of Allied Moulded's AM series, with a NEME 4X rating for indoor and outdoor use. It also features a hinged screw cover. All Allied enclosures are easy to mount on a wall, machine, or a pole.

Additional Info

Related Documents: Not Available

Part Number: AM1086

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Opaque

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339910862

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
